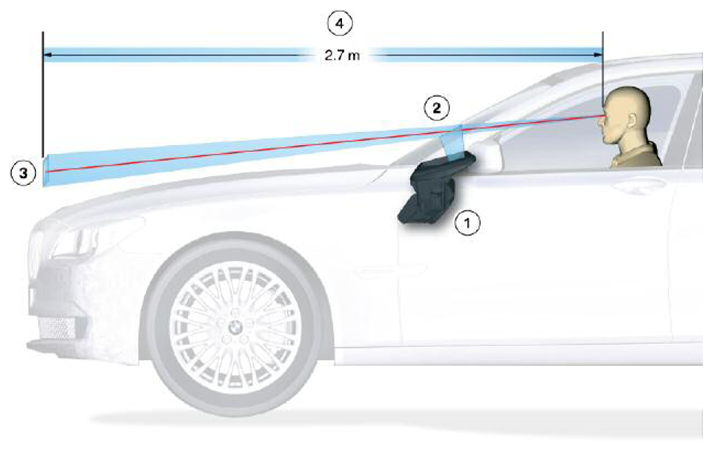

Projection Distance
The projected HUD image content appears at a distance of approximately 2.7 m from the observer's eye.
Courtesy of BMW OF NORTH AMERICA, INC. PROJECTION DISTANCE LEGENDS
| Index |
Explanation |
| 1 |
Head-up display |
| 2 |
Windshield |
| 3 |
Projected Image |
| 4 |
Projected distance |
