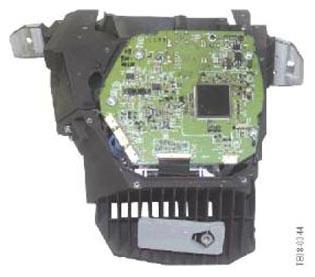

System Component: PCB
The following components among others are incorporated on the PCB:
- K-CAN interface
- Processor (CPU)
- LVDS controller
- EEPROM memory
- Power supply
The video signals are passed on to the display by the instrument cluster via an LVDS lead.
Courtesy of BMW OF NORTH AMERICA, INC.
