Display, Operating and Control Concept
With the new BMW 7 Series F01/F02, a new operating and control concept is being introduced at BMW. In addition to the main menu, there is an arrangement of four direct access buttons, a Back button and an Option button in the immediate vicinity of the controller.

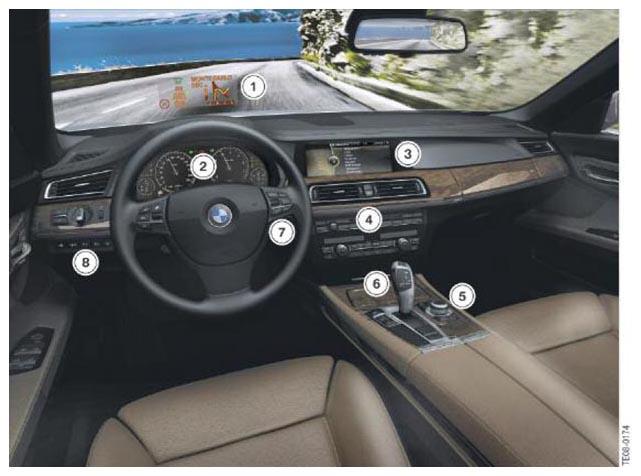

OPERATING AND CONTROL CONCEPT OF BMW7 SERIES REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Head-up display (HUD) |
| 2 | Instrument cluster |
| 3 | Central Information Display (CID) |
| 4 | Favorite buttons for individual assignment |
| 5 | Controller |
| 6 | Gear selector switch (GWS) |
| 7 | Steering column stalk/steering wheel |
| 8 | Operating unit for driver assistance systems (BEFAS) |
