86 21... Installing sponge rubber seal: Notes

NOTE: Removing old sponge rubber seal: Pull off old sponge rubber seal. Remove remaining traces of adhesive with universal cleaner.

Sponge rubber seal runs along area marked gray (1).

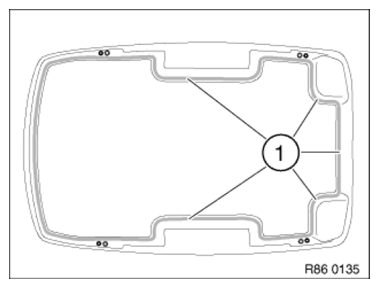

Fig 1: Identifying Sponge Rubber Seal Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Lay sponge rubber seal (1) in middle of hood contact surface (2).
