86 10... Replacing holder for chock

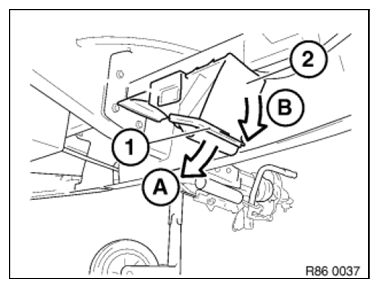

Pull bar (1) down in direction of arrow A. Pull out chock (2) in direction of arrow B at an angle towards bottom.

Fig 1: Pulling Bar And Chock

Courtesy of BMW OF NORTH AMERICA, INC.

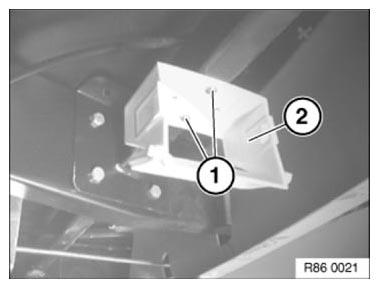

Release and unscrew cheese head tapping screws (1) on holder (2).

Fig 2: Identifying Cheese Head Tapping Screws On Holder

Courtesy of BMW OF NORTH AMERICA, INC.
