86 10... Removing loading ramp lock: Installation

Tightening Torque, 86 10 28AZ

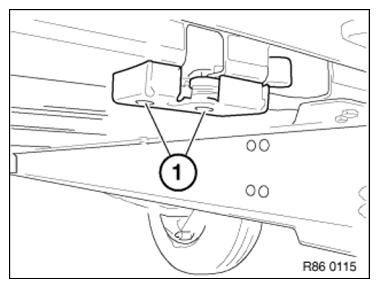

Fig 1: Identifying Loading Ramp Lock Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

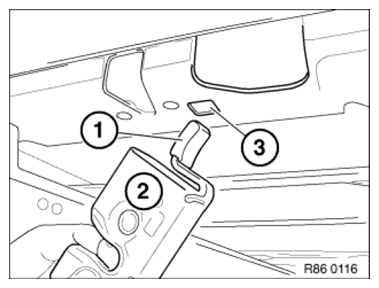

Pass lever (1) of rotary striker lock (2) out of square hole (3) by twisting from side to side.

Fig 2: Identifying Lever Of Rotary Striker Lock Out Of Square Hole

Courtesy of BMW OF NORTH AMERICA, INC.

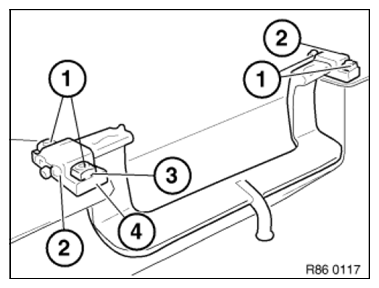

Unscrew bolts (1).

Opening for securing clip (2) points to front or rear.

Square-head nut (3) rests with its square surface parallel to bearing pedestal (4).

Tightening Torque, 86 10 29AZ

Fig 1: Identifying Clip, Square-Head Nut With Bearing Pedestal And Loading Ramp Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

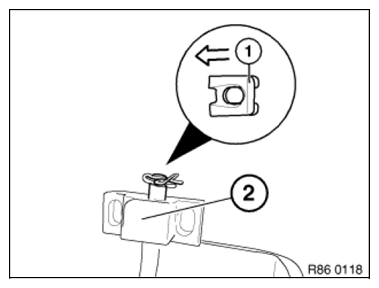

Raise edge (1) of securing clip and slide in direction of arrow towards rear.

Detach bearing pedestal (2).

Fig 2: Removing Bearing Pedestal

Courtesy of BMW OF NORTH AMERICA, INC.

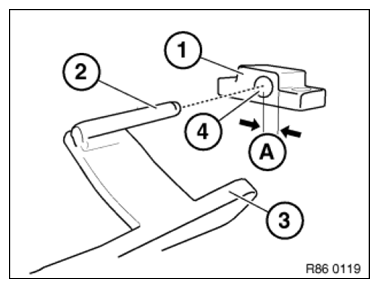

Install bearing pedestal (1) on stub (3) of locking bracket (3).

Off-center bore (4) in bearing pedestal (1) points with short distance (A) to locking bracket (3).

Fig 1: Identifying Bearing Pedestal On Stub Of Locking Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
