86 10... Disassembly of front apron: Installation

Use Sikaflex 221 as sealing compound.

Fig 1: Identifying Sealing Compound And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

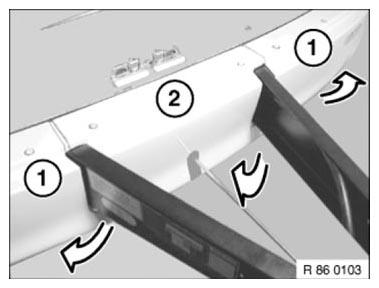

Press side sections (1) to side in direction of arrow. Tilt center section (2) downwards and remove to side.

Use Sikaflex 221 as sealing compound.

Fig 1: Pressing Side Sections To Side

Courtesy of BMW OF NORTH AMERICA, INC.
