Rear Ride Level Control Inactive (37 01 12)

REAR RIDE LEVEL CONTROL INACTIVE

TECHNICAL SERVICE BULLETIN

SUBJECT

Rear Ride Level Control Inactive

SITUATION

The vehicle rear ride height is lower than normal. The compressor for the rear height control is inoperable.

CAUSE

Water ingress into the trunk area fills the battery compartment. The relay for the electronic height control has failed due to this moisture ingress.

PROCEDURE

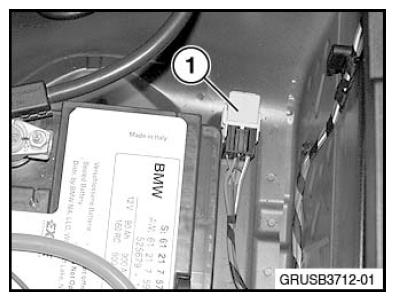

Locate the ride height control relay (1). Repair the terminal ends and install a new relay (P/N 61 36 8 373 700).

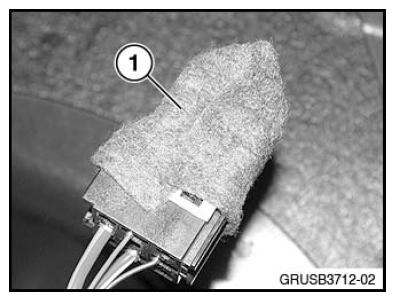

Wrap the new relay with one strip of dampening felt P/N 07 14 9 199 575 (1).

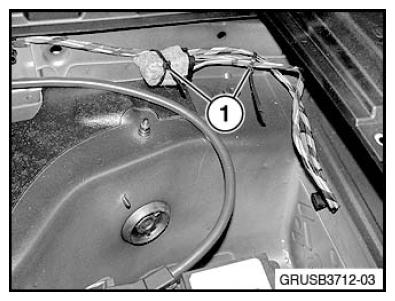

Relocate the relay as shown, and attach the relay harness to the rear harness with cable ties (1).

PARTS INFORMATION

Part Number	Description	Quantity
61 36 8 373 700	Relay	1
07 14 9 199 575*	Insulating strip	1
61 13 0 007 437	Double leaf spring contact (1.0mm)	2
61 13 0 007 438	Double leaf spring contact (2.5mm)	2
61 13 8 383 722	Cable tie	2
(1) One package of insulating strip 07 14 9 199 575 contains eight strips. Only one strip is needed per repair. For claims, submit the used quantity as a sublet; use sublet code #4.

WARRANTY INFORMATION

Covered under the terms of the BMW New Vehicle/SAV Limited Warranty when the "cause" of the moisture ingress into the trunk and relay is the result of defects in materials or workmanship of the vehicle.

Defect Code:

Refer to KSD2

See below

Labor Operation:	Labor Allowance:	Description:
61 31 898	Refer to KSD2	Replace the relay for the air supply system.
and
37 99 000	3 FRU	Work time to repair pin connectors and install rubber insulator

Refer to KSD2 and select and use the defect code for the "causal" part. Claim this additional work with the "causal" part repair defect code.

Even though work time labor operation code 37 99 000 ends in "000," it is not considered a Main labor operation.
