Structure and inner electrical connection

The tank vent shutoff valve is a solenoid valve. The tank vent shutoff valve is open when in a de-energized state. The tank vent shutoff valve is supplied with voltage from terminal 30B.

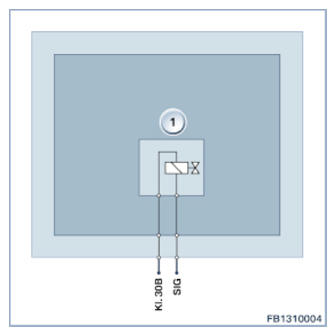

Fig 1: Tank Vent Shutoff Valve - Circuit Diagram
G09873007Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Tank vent shutoff valve
PIN REFERENCE

Pin Explanation
Terminal 30B Terminal 30, voltage supply
SIG Activation, tank vent shutoff valve
