5.2.1. Central sensor

The central sensor on the transmission tunnel contain a transverse and a longitudinal acceleration sensor.

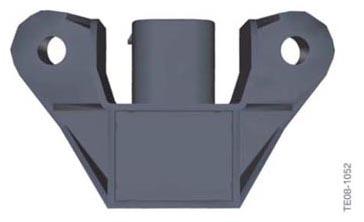

Fig 1: Identifying Central Sensor
G06926647Courtesy of BMW OF NORTH AMERICA, INC.
