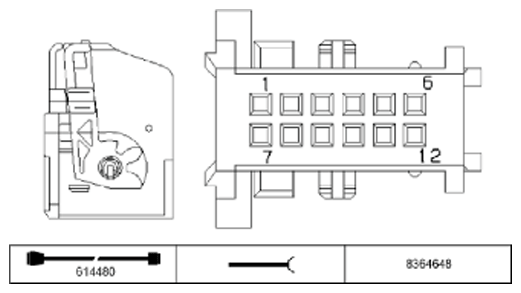

Footwell Module A58*4B Connector End View
Pin Assignments At Plug Connector A58*4B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Hall sensor signal | Steering column inclination motor |
| 2 | E | Hall sensor signal | Steering column adjustment motor |
| 3 | A | Activation, steering column adjustment | Steering column inclination motor |
| 4 | A | Activation, steering column adjustment | Steering column inclination motor |
| 5 | A | Activation, steering column adjustment | Steering column adjustment motor |
| 6 | A | Activation, steering column adjustment | Steering column adjustment motor |
| 7 | E | Ground, Hall sensor | Steering column inclination motor |
| 8 | E | Ground, Hall sensor | Steering column adjustment motor |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | -- | Not used |
