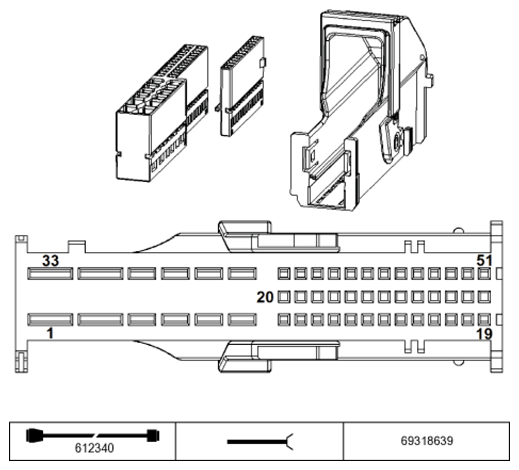

Footwell Module A58*2B Connector End View
Pin Assignments At Plug Connector A58*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | F07, F18 with DC/DC converter Power supply, terminal 30F | Fuse F5 |
| 2 | E | Power supply, terminal 30F | Fuse F16 |
| 3 | A | Activation, fog lights | Right fog light |
| 4 | A | Halogen headlights Activation, high beam headlight | Right headlight |
| 4 | A | Xenon headlights Activation cornering light | Right headlight |
| 5 | -- | Not used | |
| 6 | A | Halogen headlights Xenon headlights Activation, low beam light | Left headlight |
| 7 | A | 5-Series GT Xenon headlights Power supply, driver module | Left headlight |
| 7 | A | I01 without Adaptive Headlight and full-LED headlight Power supply, driver module | Left headlight |
| 8 | -- | Not used | |
| 9 | A | Activation, reversing light | Tail light, inner right |
| 10 | A | Activation, rear fog light Dynamic brake light | Tail light, inner right |
| 11 | A | Activation, flashing indicator lamp | Direction indicator light repeater, front right |
| 12 | A | Activation, flashing indicator lamp | Tail light, outer right |
| 13 | A | from model revision with Adaptive Headlight or full-LED headlight Activation, flashing indicator lamp | Left headlight |
| 13 | -- | 5-Series GT Xenon headlights not used | |
| 13 | A | up to model revision Halogen headlights Activation, flashing indicator lamp | Left headlight |
| 14 | A | Activation, tail light | Tail light, inner left |
| 15 | -- | Not used | |
| 16 | A | Activation, tail light | Tail light, outer left |
| 17 | -- | Not used | |
| 18 | A | Activation, tail light | Tail light, outer right |
| 19 | -- | Not used | |
| 20 | -- | Not used | |
| 21 | -- | Not used | |
| 22 | E/A | LIN bus signal exterior mirror, high version | Exterior mirror, right |
| 23 | E/A | LIN bus signal exterior mirror, high version | Exterior mirror, left |
| 24 | E/A | LIN bus signal | Right headlight |
| 25 | E/A | LIN bus signal | Left headlight |
| 26 | -- | Not used | |
| 27 | -- | Not used | |
| 28 | -- | Not used | |
| 29 | -- | Not used | |
| 30 | -- | Not used | |
| 31 | -- | Not used | |
| 32 | -- | Not used | |
| 33 | -- | Not used | |
| 34 | -- | Not used | |
| 35 | A | Activation, interior light | Connector, interior light |
| 36 | -- | Not used | |
| 37 | -- | Not used | |
| 38 | -- | Not used | |
| 39 | A | Activation, interior light | Interior light, rear |
| 40 | A | Activation, brake light | Auxiliary brake light |
| 41 | A | Activation, bi-xenon shutter | Left headlight Right headlight |
| 42 | A | I01 without Adaptive Headlight and full-LED headlight Power supply, driver module | Right headlight |
| 42 | A | 5-Series GT Xenon headlights Power supply, driver module | Right headlight |
| 43 | E/A | K-CAN bus signal | Bus connection |
| 44 | E/A | K-CAN bus signal | Bus connection |
| 45 | -- | Not used | |
| 46 | -- | Not used | |
| 47 | M | Ground | Ground point |
| 48 | -- | Not used | |
| 49 | -- | Not used | |
| 50 | -- | Not used | |
| 51 | -- | Not used |
