Electronic Night Vision Module A80*2B Connector End View

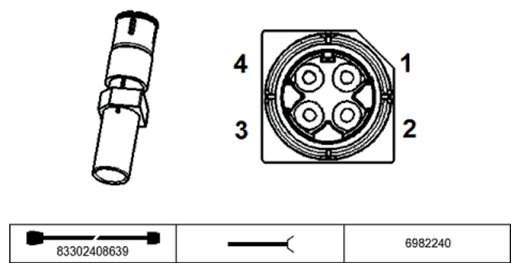

Fig 1: Electronic Night Vision Module A80*2B Connector End View
G11231436Courtesy of BMW OF NORTH AMERICA, INC.
Pin Assignments At Plug Connector A80*2B

Pin Type Description /Signal type Connection /Measuring information
0 M Shielding Night vision camera
1 E/A Local CAN bus signal Night vision camera
2 E Video signal Night vision camera
3 E/A Local CAN bus signal Night vision camera
4 E Video signal Night vision camera
