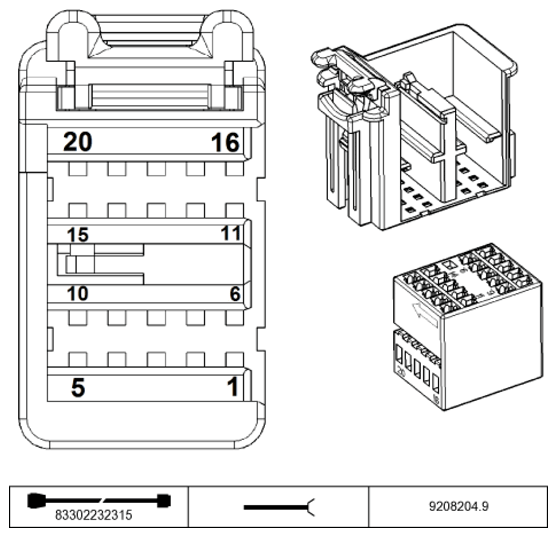

Crash Safety Module A11*5B Connector End View
Pin Assignments At Plug Connector A11*5B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Airbag activation, positive connection | Gas generators for driver's airbag |
| 2 | A | Airbag activation, negative connection | Gas generators for driver's airbag |
| 3 | A | Airbag activation, negative connection | Gas generators for front passenger airbag |
| 4 | A | Airbag activation, positive connection | Gas generators for front passenger airbag |
| 5 | A | Signal, passenger airbag deactivation switch | Switch for passenger airbag deactivation not USA |
| 6 | A | Airbag activation, positive connection | Gas generator for driver knee airbag USA F10 Korea as from 2013_07 |
| 7 | A | Airbag activation, negative connection | Gas generator for driver knee airbag USA F10 Korea as from 2013_07 |
| 8 | A | Airbag activation, negative connection | Gas generator for front passenger knee airbag USA F10 Korea as from 2013_07 |
| 9 | A | Airbag activation, positive connection | Gas generator for front passenger knee airbag USA F10 Korea as from 2013_07 |
| 10 | E | Signal, passenger airbag deactivation switch | Switch for passenger airbag deactivation not USA |
| 11 | A | Airbag activation, positive connection | Gas generators for driver's airbag USA F10 Korea as from 2013_07 |
| 12 | A | Airbag activation, negative connection | Gas generators for driver's airbag USA F10 Korea as from 2013_07 |
| 13 | A | Airbag activation, negative connection | Gas generators for front passenger airbag USA F10 Korea as from 2013_07 |
| 14 | A | Airbag activation, positive connection | Gas generators for front passenger airbag USA F10 Korea as from 2013_07 |
| 15 | A | Emergency call signal | Telematic Communication Box |
| 15 | A | Emergency call signal | Combox |
| 16 | A | Airbag activation, positive connection | Gas generators for driver's airbag USA F10 Korea as from 2013_07 |
| 17 | A | Airbag activation, negative connection | Gas generators for driver's airbag USA F10 Korea as from 2013_07 |
| 18 | A | Airbag activation, negative connection | Gas generators for front passenger airbag USA F10 Korea as from 2013_07 |
| 19 | A | Airbag activation, positive connection | Gas generators for front passenger airbag USA F10 Korea as from 2013_07 |
| 20 | -- | Not used |
