10.1. Operation
The collision warning with brake application function is switched on or off with the driver assistance system control panel.
Upon switching on the function, a display opens in the central information display. Here the driver can configure the time of the advance warning in two stages, or deactivate/reactivate the advance warning. The setting selected by the driver is maintained on a key-specific basis via a terminal change.

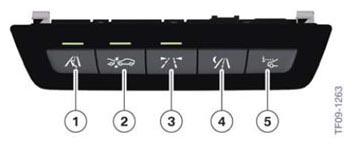

INDEX EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Active Blind Spot Detection |
| 2 | Collision warning with brake application function (adaptive brake assistant) |
| 3 | Lane Departure Warning |
| 4 | Night Vision with pedestrian detection |
| 5 | Head-Up Display |
