41 00... Overview Of Adhesive Cartridge Guns

Adhesive gun 83 19 2 149 522

Obtainable via Electronic Parts Catalogue.

Usable for adhesives K4, K5a.

Usable for BMW 2K polyurethane foam.

Including insert 1:1 and 2:1.

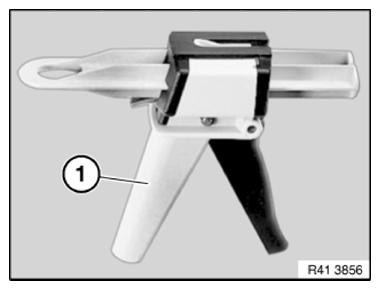

Fig 1: Identifying Adhesive Gun (83 19 2 149 522)

G09915786

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive gun 81 49 0 443 166

Usable for adhesive K3.

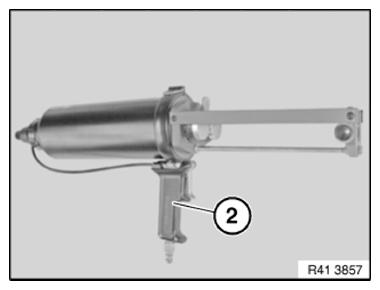

Fig 2: Identifying Adhesive Gun (81 49 0 443 166)

G09915787

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive cartridge gun 81 49 2 213 059

Usable for adhesives K1, K5b, sealant D1/D2, window glass adhesive and all 310 ml Euro cartridges.

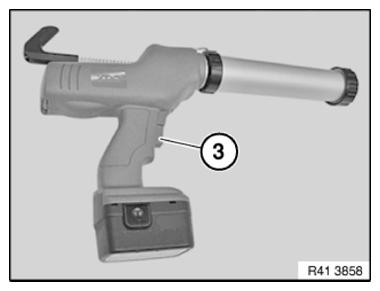

Fig 3: Identifying Adhesive Cartridge Gun (81 49 2 213 059)

G09915788

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive cartridge gun 83 30 0 494 836

Usable for structural foam HS2.

NOTE: Special tool number 41 3 010

Fig 4: Identifying Adhesive Cartridge Gun (83 30 0 494 836)

G09915789

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive cartridge gun 81 49 2 355 475

Usable for adhesive K2 (2x290 ml glue cartridge)

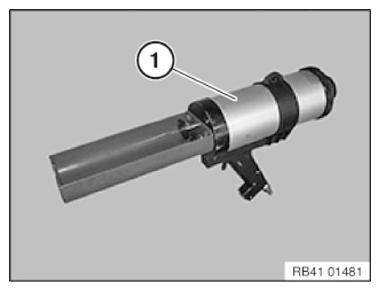

Fig 5: Identifying Cartridge Gun Speed Control

G09915790

Courtesy of BMW OF NORTH AMERICA, INC.
