41 00... Body Gap Dimensions

The dimensions specified in this information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap .

Symmetry of the gaps between left and right sides of the vehicle has top priority .

The door gaps must not deviate between the front and rear gap by more than 1.0 mm .

No gap dimension are specified for components which cannot be adjusted .

Dimensions in mm

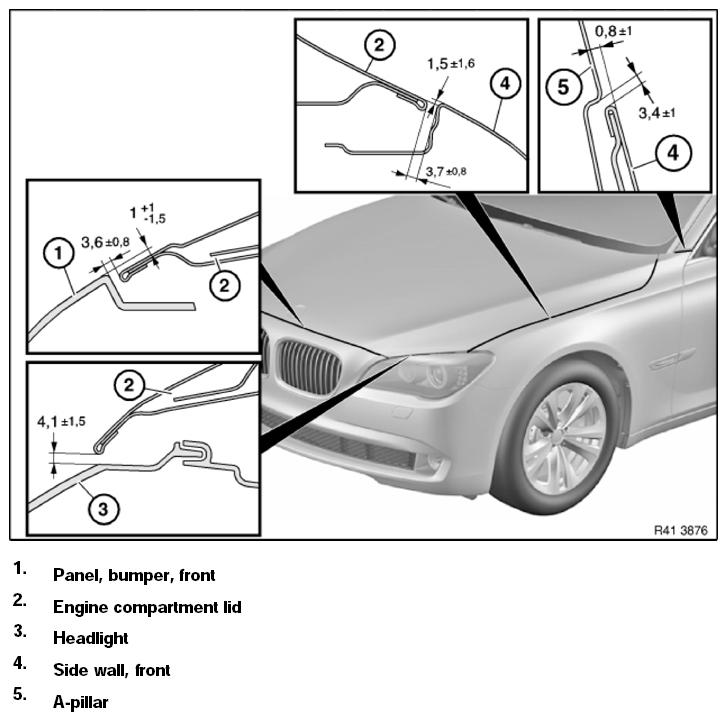

Fig 1: Front Bumper, Hood, Headlamp, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

G09915768

Courtesy of BMW OF NORTH AMERICA, INC.

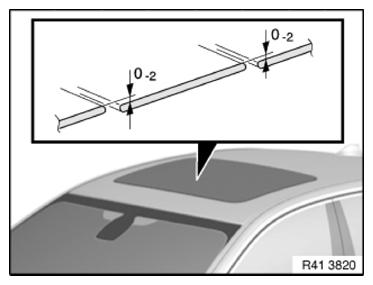

Fig 2: Roof And Moonroof Body Gap Dimensions And Measurement Points

G09915769

Courtesy of BMW OF NORTH AMERICA, INC.

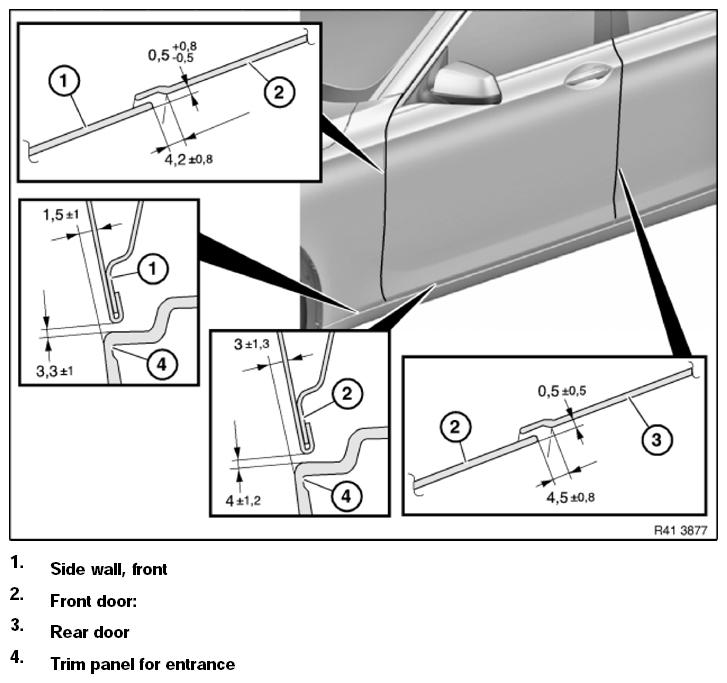

Fig 3: Front Fender, Front Door, Rear Door And Sill Trim Panel Body Gap Dimensions And Measurement Points

G09915770

Courtesy of BMW OF NORTH AMERICA, INC.

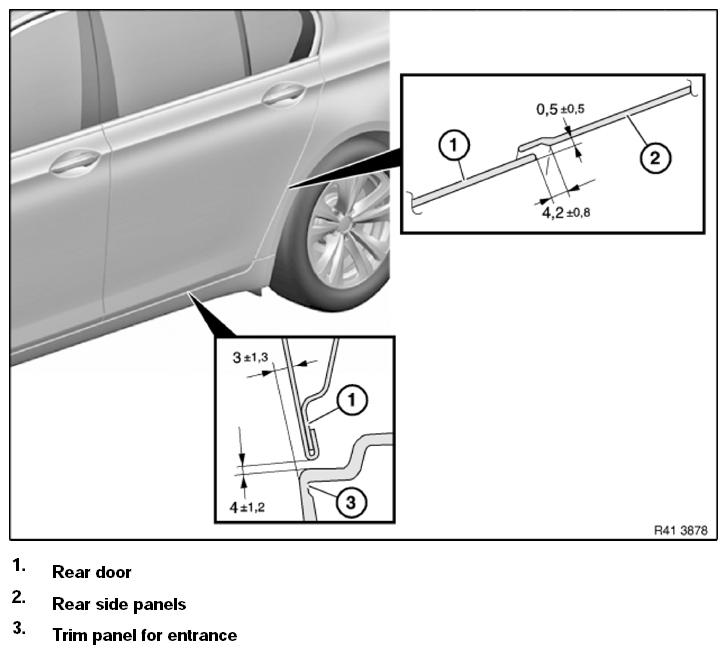

Fig 4: Rear Door, Quarter Panel And Sill Trim Panel Body Gap Dimensions And Measurement Points

G09915771

Courtesy of BMW OF NORTH AMERICA, INC.

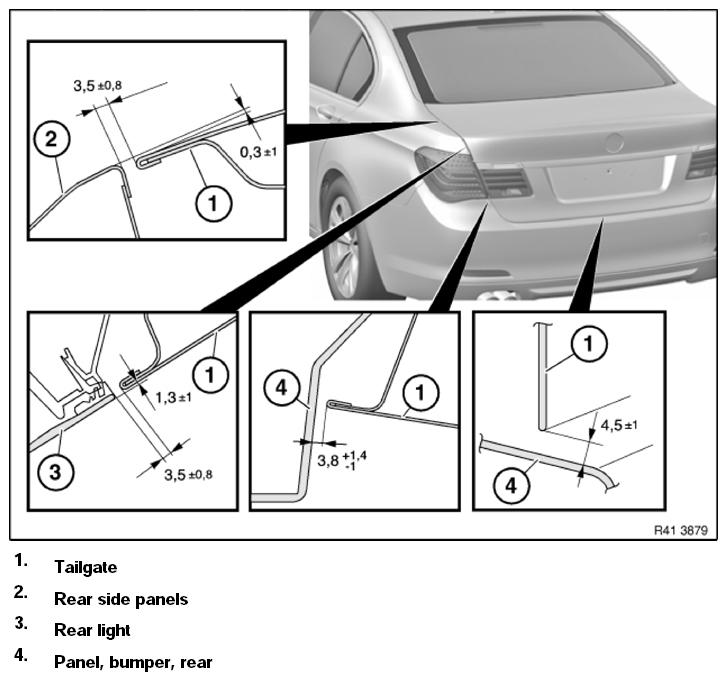

Fig 5: Trunk, Quarter Panel, Tail Lamp And Rear Bumper Body Gap Dimensions And Measurement Points

G09915772

Courtesy of BMW OF NORTH AMERICA, INC.
