1.1. Driving dynamics and comfort

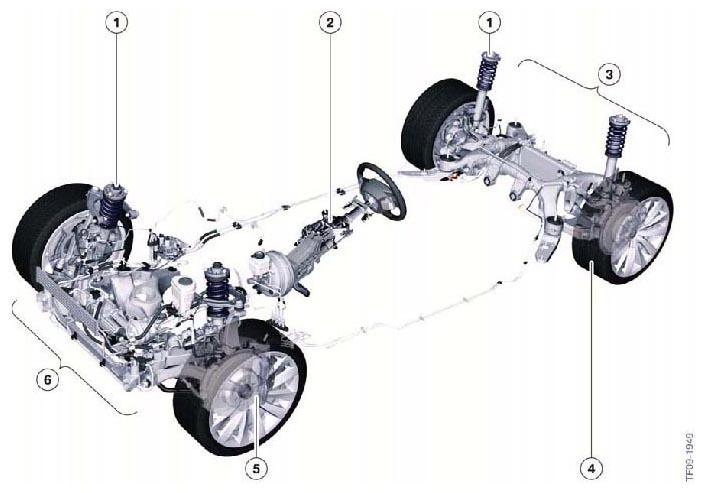

Fig 1: Identifying F10 Chassis And Suspension

Courtesy of BMW OF NORTH AMERICA, INC.

EXPLANATION CHART

Index	Explanation
1	Suspension/damping
2	Steering
3	Rear axle
4	Wheels
5	Brakes
6	Front axle

The chassis and suspension of the F10 are based on that of the F01, which set new standards in terms of driving dynamics and comfort. The chassis and suspension have been adapted to the F10 requirements resulting in exceptional driving dynamics with a continued very high level of comfort.

The familiar technological innovations from the F01 like Integral Active Steering, Integrated Chassis Management ICM, Dynamic Drive and Electronic Damper Control EDC are also installed in the F10.
