Electrically adjustable seats: Notes
The following seat versions are used:
- Basic seat
- Sports seat
- Seats for Coupe and convertible
Depending on the seat version and the optional equipment, the following seat functions are possible:
- Forward/back seat adjustment
- Seat height adjustment
- Seat-tilt adjustment
- Seat depth adjustment (manual and sports seat only)
- Backrest angle adjustment
- Backrest width adjustment (sports seat only)
- Head restraint height adjustment (manual only)
- Head restraint angle adjustment (manual only)
- Lumbar-support adjustment

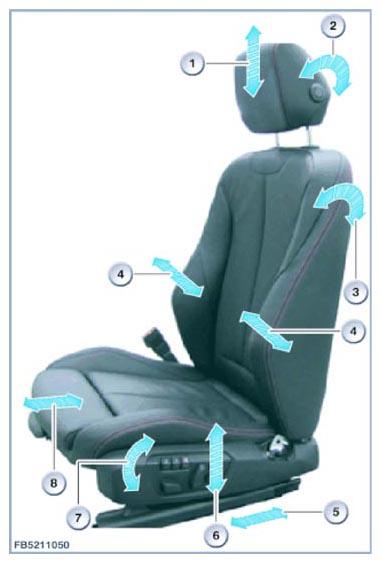

The graphic below shows the electrically adjustable sports seat with lumbar support and backrest width adjustment.
| Item | Explanation |
|---|---|
| 1 | Headrest restraint height adjustment |
| 2 | Head restraint angle adjustment |
| 3 | Backrest angle adjustment |
| 4 | Seat backrest width adjustment |
| 5 | Horizontal seat adjustment |
| 6 | Seat height adjustment |
| 7 | Seat tilt angle adjustment |
| 8 | Seat depth adjustment |
