99 00... Miscellaneous painting

Follow GENERAL INSTRUCTIONS ON PAINTING .

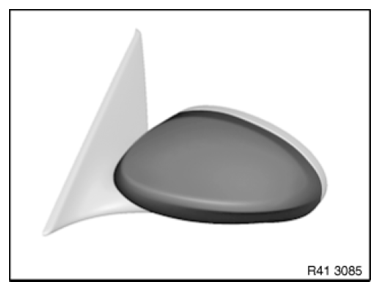

Rearview mirror

Fig 1: Identifying Rearview Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Outside handle

Area specification applies to all paint stages.

Fig 2: Identifying Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

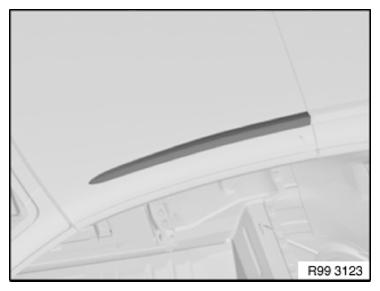

Trim strip on roof frame, front

Area specification applies to all paint stages.

Fig 3: Identifying Roof Frame Trim Strip (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

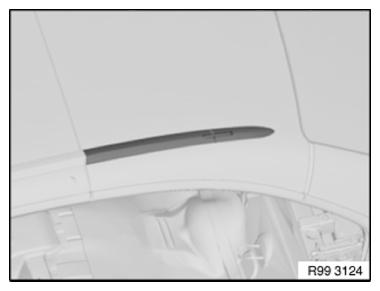

Trim strip on roof frame, rear

Area specification applies to all paint stages.

Fig 4: Identifying Roof Frame Trim Strip (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

Flap for fuel filler neck

Area specification applies to all paint stages.

Additionally with inner plate for paint stages 2 and 3.

Fig 5: Identifying Fuel Filler Neck Flap

Courtesy of BMW OF NORTH AMERICA, INC.

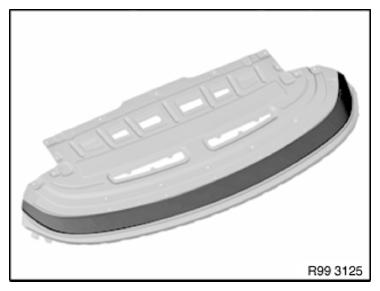

Convertible top compartment lid

Area specification applies to all paint stages.

Fig 6: Identifying Convertible Top Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Trim for cover on side member

Area specification applies to all paint stages.

Fig 7: Identifying Trim For Cover On Side Member

Courtesy of BMW OF NORTH AMERICA, INC.

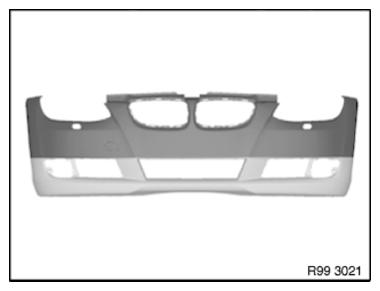

Bumper upper section, front

Area specification applies to all paint stages.

Fig 8: Identifying Bumper Upper Section (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

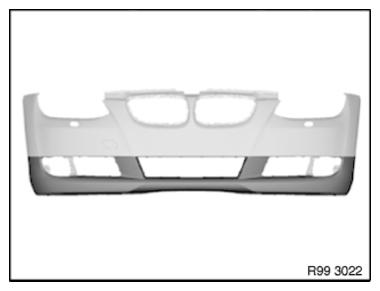

Bumper lower section, front

Area specification applies to all paint stages.

Fig 9: Identifying Bumper Lower Section (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

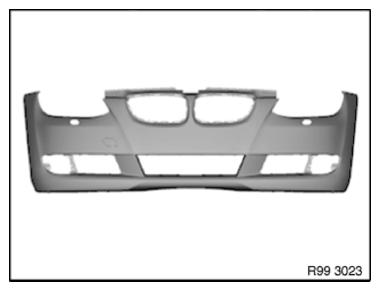

Front bumper

Area specification applies to all paint stages.

Fig 10: Identifying Front Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Rear bumper

Area specification applies to all paint stages.

Fig 11: Identifying Rear Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
