99 00... Interior painting

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 335is, 2013 BMW 335i, 2012 BMW 335is, 2012 BMW 335i, and 2011 BMW 335is. However, it is still accessible from the selected car via links, so may be relevant.

Follow GENERAL INSTRUCTIONS ON PAINTING .

Engine compartment, complete

Carry over the area shown symmetrically to the other side of the car.

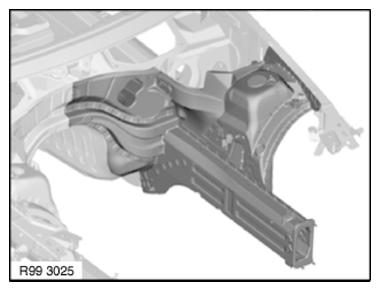

Fig 1: Identifying Engine Compartment (Complete)

G09853072

Courtesy of BMW OF NORTH AMERICA, INC.

Engine bulkhead

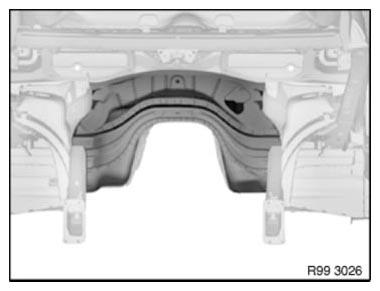

Fig 2: Identifying Engine Bulkhead

G06912444

Courtesy of BMW OF NORTH AMERICA, INC.

Engine carrier (inside only)

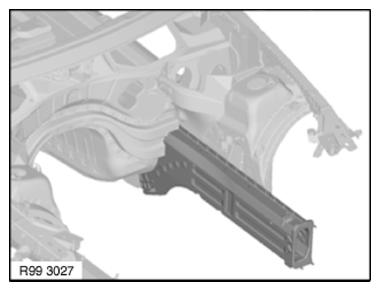

Fig 3: Identifying Engine Carrier (Inside Only)

G09853074

Courtesy of BMW OF NORTH AMERICA, INC.

Engine carrier, complete

Inner side shown

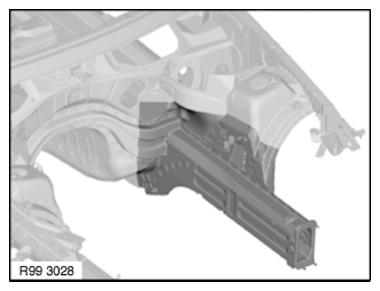

Fig 4: Identifying Engine Carrier - Complete (Inner Side)

G09853075

Courtesy of BMW OF NORTH AMERICA, INC.

Engine carrier, complete

Outer side shown

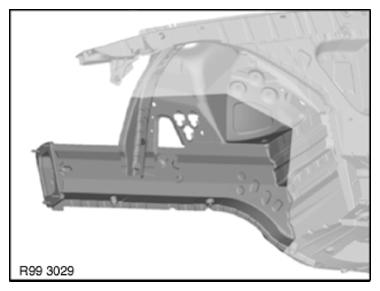

Fig 5: Identifying Engine Carrier - Complete (Outer Side)

G09853076

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front (inside only)

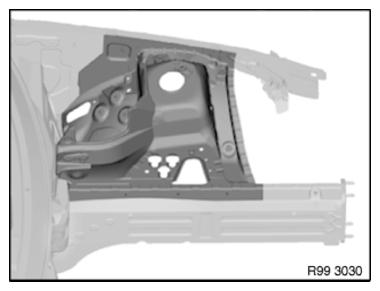

Fig 6: Identifying Wheel Arch - Front (Inside Only)

G09853077

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Inner side shown

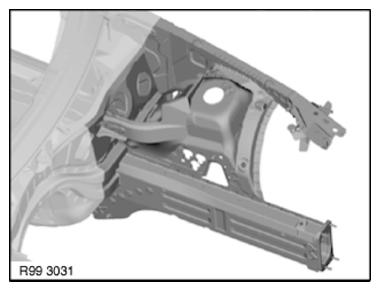

Fig 7: Identifying Wheel Arch - Front (Inner Side)

G09853078

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Outer side shown

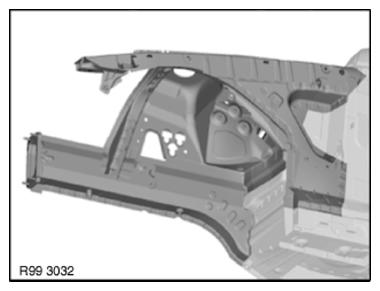

Fig 8: Identifying Wheel Arch - Front (Outer Side)

G09853079

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment floor plate

Carry over the area shown symmetrically to the other side of the car.

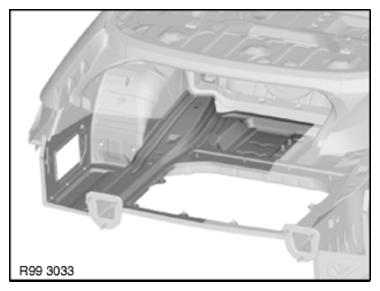

Fig 9: Identifying Luggage Compartment Floor Plate

G09853080

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, rear

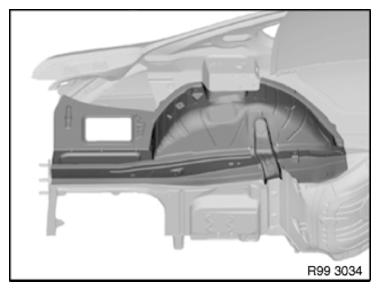

Fig 10: Identifying Wheel Arch (Rear)

G09853081

Courtesy of BMW OF NORTH AMERICA, INC.
