13 62 593 Removing and installing/replacing pressure sensor on left intake manifold (N74)

Necessary preliminary tasks:

• Remove ACOUSTIC COVER

Unlock plug (1) and remove.

Unfasten screws (2).

Tightening torque: see 7AZ in 13 62 SENDERS FOR CONTROL UNIT

Pull pressure sensor (3) out of intake air manifold.

Installation:

Coat sealing ring with anti-friction agent.

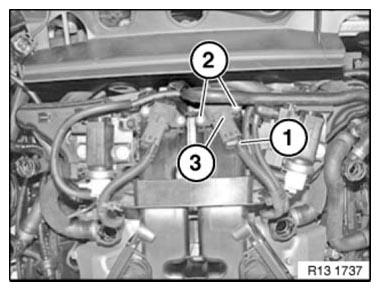

Fig 1: Identifying Pressure Sensor, Plug And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Delete fault memory.
