N54 - Enhancement To HDP Replacement Procedure (13 10 10)

Publication date: 2010-08-02
Reference number: 13 10 10

N54 - ENHANCEMENT TO HDP REPLACEMENT PROCEDURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 13 10 10, Date of Issue: August 2010

BMW:	All with N54 engine
GROUP:	13 - Fuel Systems

SUBJECT

N54 - Enhancement to HDP Replacement Procedure

INFORMATION

The Repair Instructions REP13 51 017 (N54 Remove/replace HDP High-pressure Pump) have been updated with the release of Special Tool P/N 83 30 0 496 939.

The special tool accommodates easy removal of the engine harness block located under the intake manifold (see the attachment). Consequently, the removal of the intake manifold is no longer necessary when replacing the HDP on the N54 engine.

Please consult the latest version of the KSD2 for the adjusted labor allowances.

Special Tool P/N 83 30 0 496 939 (Car Tool P/N 00 7 300) is being distributed to all BMW centers via the Automatic Tool Shipment Program (refer to SI B04 22 10 ).

WARRANTY INFORMATION

For information only.

ATTACHMENTS

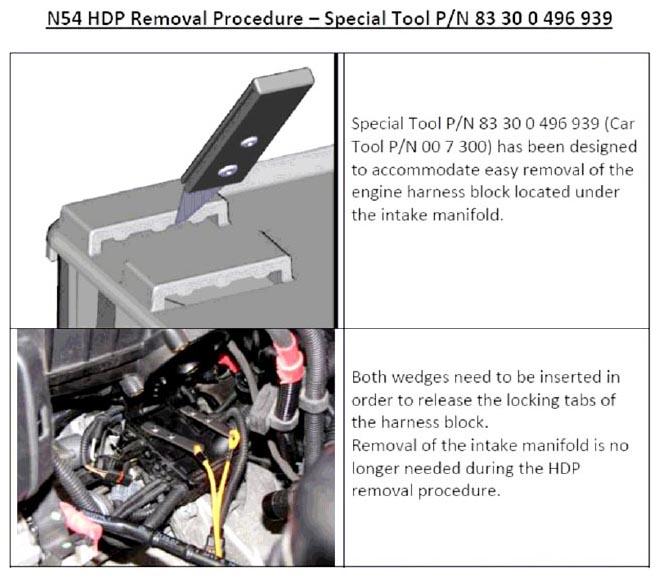

Fig 1: N54 HDP Removal Procedure - Special Tool P/N 83 30 0 496 939
