Necessary preliminary tasks

• Remove TRIM FROM REAR APRON
• Remove right LUGGAGE COMPARTMENT TRIM PANEL
• Partially detach insulating mat

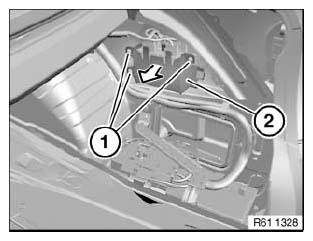

Release screws (1) and pull back device holder (2).

Fig 1: Pulling Back Device Holder

Courtesy of BMW OF NORTH AMERICA, INC.

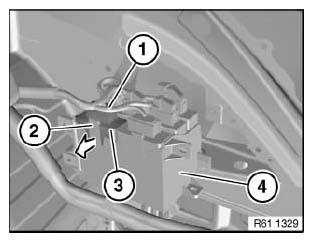

Unfasten plug connection (1) and disconnect.

Unlock catch (2) in direction of arrow and remove trailer module (3) upwards from device carrier (4).

Fig 2: Unlocking Catch In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.
