11 00 590 Exchange engine (N54, N54T)

Necessary preliminary tasks:

• Remove and install ENGINE .
• Mount engine on ASSEMBLY STAND .
• If necessary, remove foreign bodies from turbocharger group.
• Check all assemblies and convert to replacement power plant.

Remove transportation locks (1).

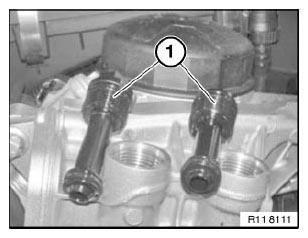

Fig 1: Identifying Transportation Locks With Cloth

Courtesy of BMW OF NORTH AMERICA, INC.

Transportation locks (1) are no longer needed.

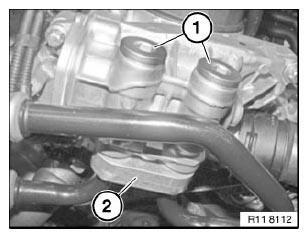

Fig 2: Identifying Transportation Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Modify screw plugs (1) from old power plant.

Insert screw plugs (1).

Tightening torque: 11 42 11AZ .

Secure OIL COOLER LINES with mounting bar (2).

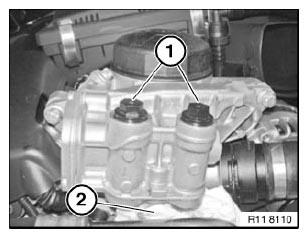

Fig 3: Identifying Screw Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
