Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| E-Box | Right rear of engine compartment. |

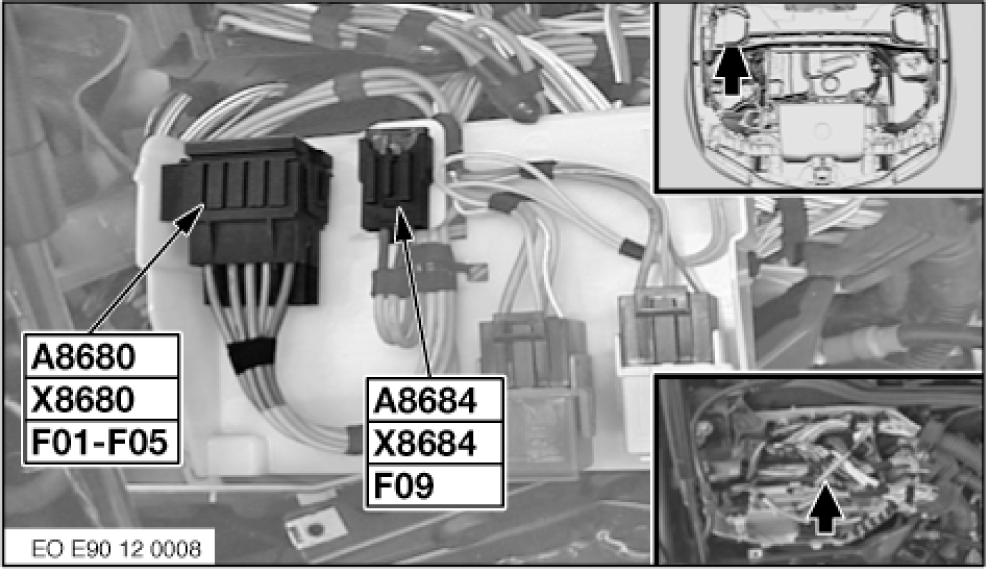

| Engine Electronics Fuse Carrier (A8680) | Right plenum chamber E-box. See Figure. |

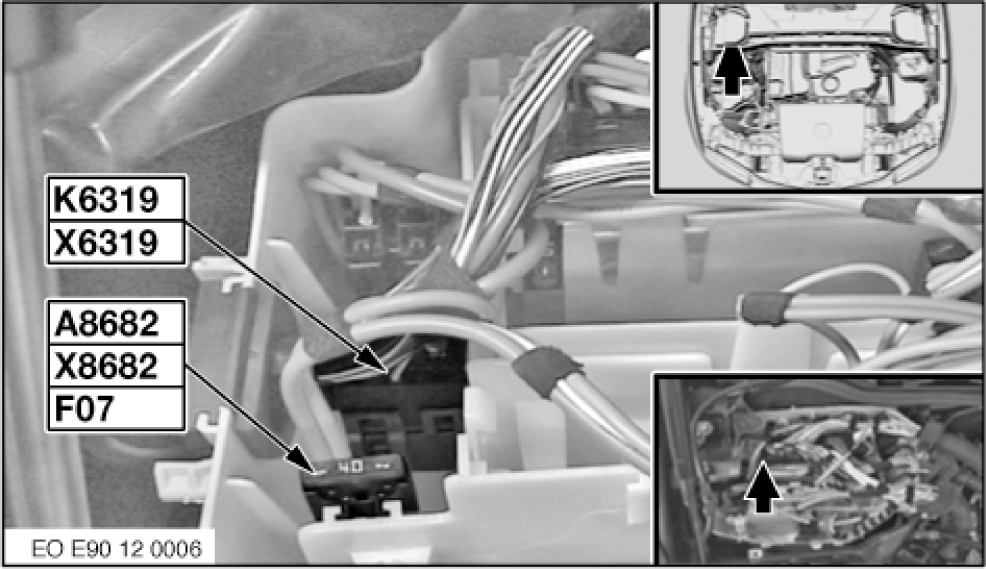

| Engine Electronics Fuse Carrier (A8682) | Right plenum chamber E-box. See Figure. |
| Junction Box (A4010) | Under right side of dash. See Figure. |
| Junction Box Electronics (A4010a) | Under right side of dash. See Figure. |

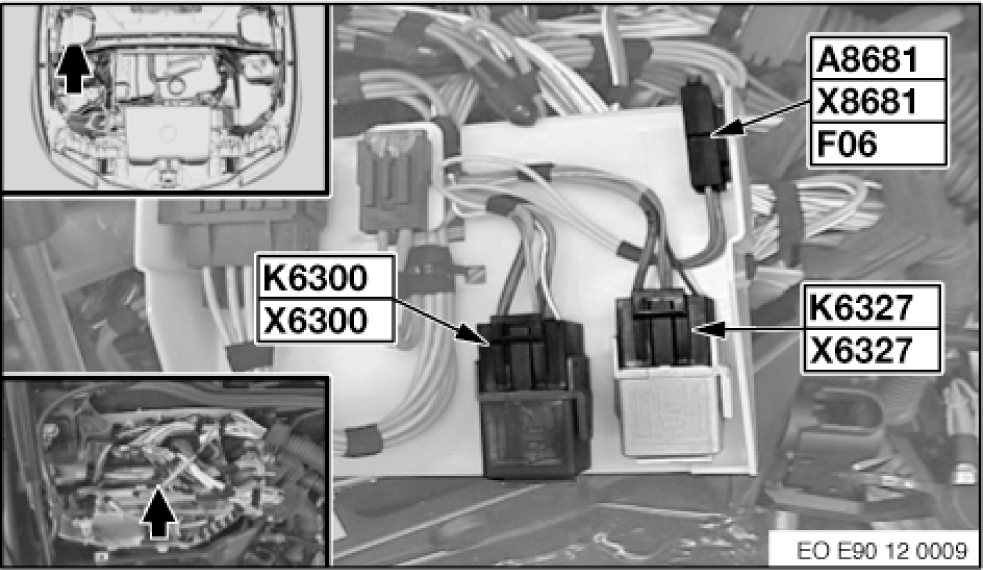

| Motor Electronics Fuse Carrier (A8681) | Right plenum chamber E-box. See Figure. |
| Motor Electronics Fuse Carriers (A8684) | Right plenum chamber E-box. See Figure. |

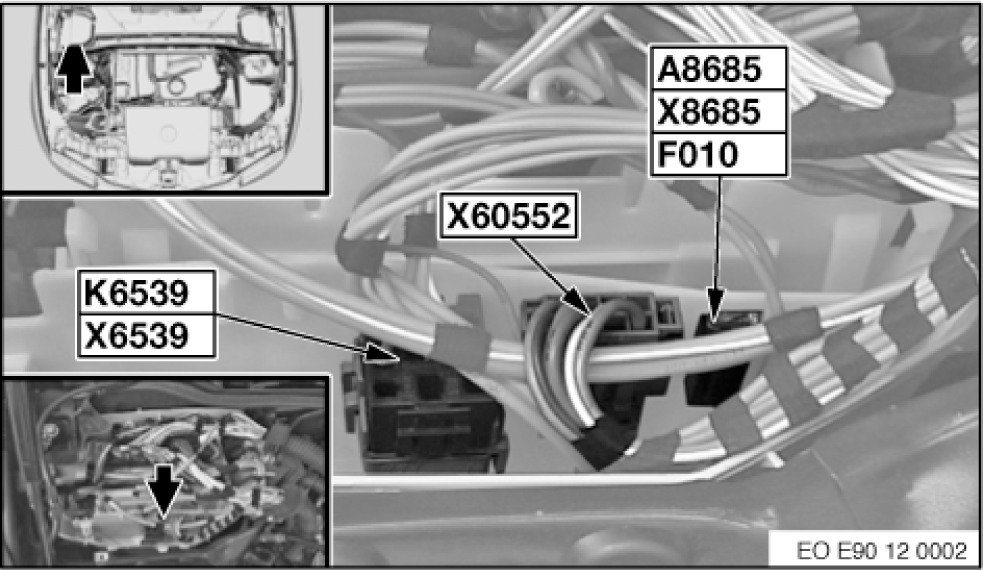

| Motor Electronics Fuse Carriers (A8685) | Right plenum chamber E-box. See Figure. |
| Rear Fuse Holder (A46) | Right side of rear compartment. See Figure. |
