72 12 ... Overview Of Airbag Modules, Airbag Control Unit, Belt TENSIONERS

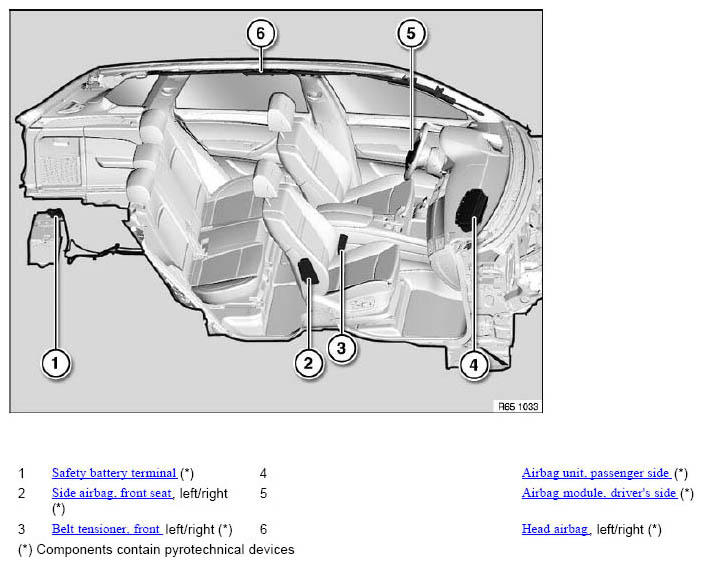

Fig 1: Identifying Airbag Modules, Airbag Control Unit, Belt Tensioners Components Location
G04792859Courtesy of BMW OF NORTH AMERICA, INC.
