12 90 100 Replacing Fan For Electronics Box

NOTE: Follow instructions for removing and installing electronic control units. See 12 00... Instructions for Removing And Installing Electronic Control Units

Necessary preliminary tasks:

Unclip plug (1).

Remove DDE control unit (3).

Remove relay plug-in (5) towards top.

Release screws (4).

Lift out device carrier (2).

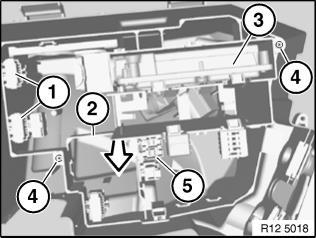

Fig 1: Removing Device Carrier
G00497008Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection and disconnect.

Release air cowl (1).

Remove electric fan (2) with bracket.

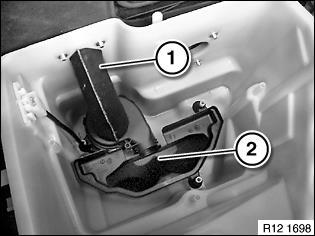

Fig 2: Remove Electric Fan (2) With Bracket
G00497009Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

Read fault memory.
