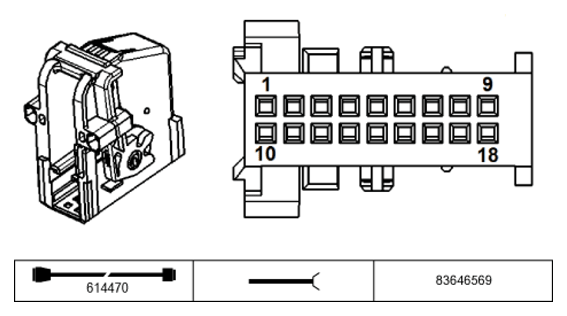

Video Module X18804 Connector End View
Pin Assignments X18804
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Analogue video signal | Electronic night vision module |
| 2 | Not occupied | ||
| 3 | E | Analogue video signal | Multimedia changer |
| 4 | Not occupied | ||
| 5 | Not occupied | ||
| 6 | Not occupied | ||
| 7 | Not occupied | ||
| 8 | Not occupied | ||
| 9 | Not occupied | ||
| 10 | M | Shielding | Electronic night vision module |
| 11 | M | Shielding | Multimedia changer |
| 12 | Not occupied | ||
| 13 | Not occupied | ||
| 14 | Not occupied | ||
| 15 | Not occupied | ||
| 16 | Not occupied | ||
| 17 | Not occupied | ||
| 18 | Not occupied |
