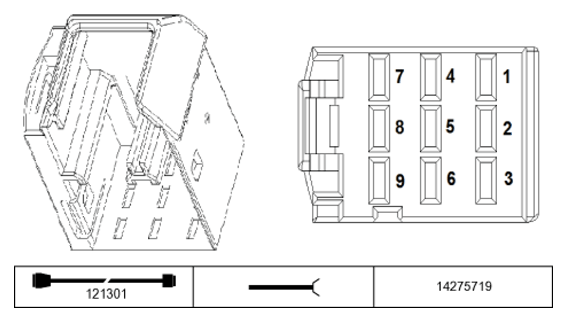

Engine Control Module II (DME) SX60205A Connector End View
Pin Assignments X60205
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, ignition coil | Ignition coil, cylinder 10 |
| 2 | A | Signal, ignition coil | Ignition coil, cylinder 9 |
| 3 | A | Signal, ignition coil | Ignition coil, cylinder 7 |
| 4 | Not occupied | ||
| 5 | M | Ground | Ground point |
| 6 | A | Signal, ignition coil | Ignition coil, cylinder 12 |
| 7 | Not occupied | ||
| 8 | A | Signal, ignition coil | Ignition coil, cylinder 8 |
| 9 | A | Signal, ignition coil | Ignition coil, cylinder 11 |
