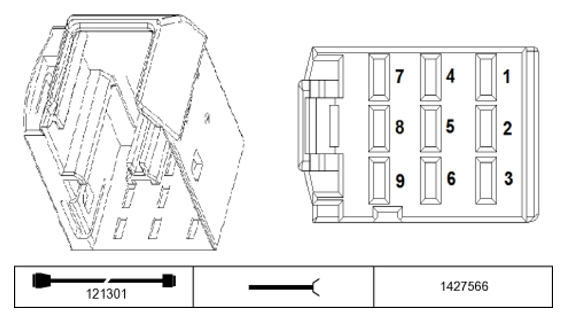

Engine Control Module I (DME) X60105 Connector End View
Pin Assignments X60105
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, ignition coil | Ignition coil, cylinder 4 |
| 2 | A | Signal, ignition coil | Ignition coil, cylinder 3 |
| 3 | A | Signal, ignition coil | Ignition coil, cylinder 1 |
| 4 | Not occupied | ||
| 5 | M | Ground | Ground point |
| 6 | A | Signal, ignition coil | Ignition coil, cylinder 6 |
| 7 | Not occupied | ||
| 8 | A | Signal, ignition coil | Ignition coil, cylinder 2 |
| 9 | A | Signal, ignition coil | Ignition coil, cylinder 5 |
