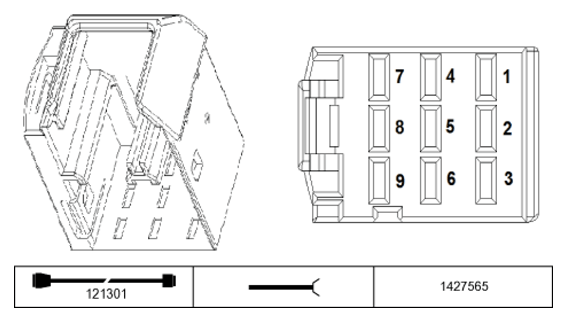

Engine Control Module I (DME) X60101 Connector End View
Pin Assignments X60101
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 15 | Integrated supply module (IVM) |
| 2 | A | Signal, return shutoff valve | Return flow shut-off valve |
| 3 | A/E | TXD signal | Integrated supply module (IVM) |
| 4 | M | Ground | Integrated supply module (IVM) |
| 5 | M | Ground | Integrated supply module (IVM) |
| 6 | M | Ground | Integrated supply module (IVM) |
| 7 | E | Supply, terminal 30 | Integrated supply module (IVM) |
| 8 | E | Supply, terminal 87 | Integrated supply module (IVM) |
| 9 | Not occupied |
