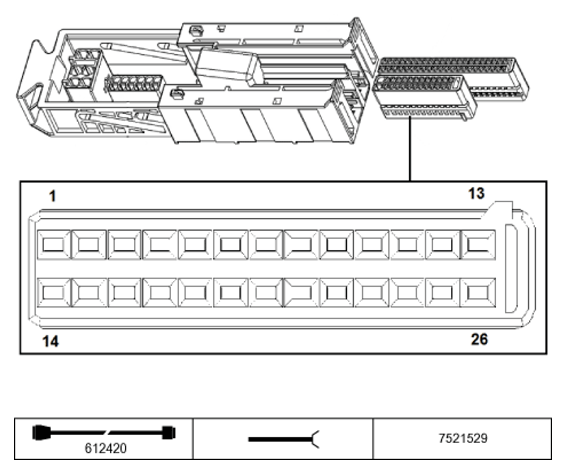

DME Control Module X60007 Connector End View
Pin Assignments at Plug Connector X60007
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, ignition | Ionic current control module |
| 2 | A | Signal, ignition | Ionic current control module |
| 3 | A | Signal, ignition | Ionic current control module |
| 4 | A | Signal, ignition | Ionic current control module |
| 5 | A | Signal, ignition | Ionic current control module |
| 6 | Not occupied | ||
| 7 | A | Ionic current signal gain | Ionic current control module |
| 8 | A | Ionic current signal gain | Ionic current control module 2 |
| 9 | E | Signal, ionic current | Ionic current control module |
| 10 | Not occupied | ||
| 11 | E | Signal Intake camshaft sensor | Intake camshaft sensor |
| 12 | E | Signal Exhaust camshaft sensor | Exhaust camshaft sensor |
| 13 | E | Signal Crankshaft sensor | Crankshaft sensor |
| 14 | A | Signal, ignition | Ionic current control module 2 |
| 15 | A | Signal, ignition | Ionic current control module 2 |
| 16 | A | Signal, ignition | Ionic current control module 2 |
| 17 | A | Signal, ignition | Ionic current control module 2 |
| 18 | A | Signal, ignition | Ionic current control module 2 |
| 19 | Not occupied | ||
| 20 | A | Signal, ionic current measurement | Ionic current control module |
| 21 | A | Signal, ionic current measurement | Ionic current control module 2 |
| 22 | E | Signal, ionic current | Ionic current control module 2 |
| 23 | M | Ground | Ground connector |
| 24 | E | Signal Intake camshaft sensor 2 | Intake camshaft sensor 2 |
| 25 | E | Signal Exhaust camshaft sensor 2 | Exhaust camshaft sensor 2 |
