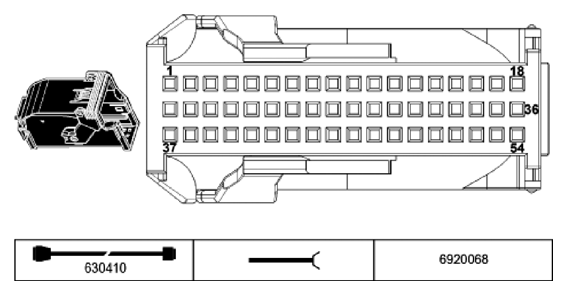

Basic Body Module X13252 Connector End View
Pin Assignments at Plug Connector X13252
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, headlight washer pump relay | Relay, headlight washer |
| 2 | Not occupied | ||
| 3 | Not occupied | ||
| 4 | Not occupied | ||
| 5 | E | Signal, interior light switch | Interior light, front |
| 6 | Not occupied | ||
| 7 | Not occupied | ||
| 8 | Not occupied | ||
| 9 | Not occupied | ||
| 10 | A | Signal, wiper motor | Wiper motor |
| 11 | Not occupied | ||
| 12 | Not occupied | ||
| 13 | Not occupied | ||
| 14 | Not occupied | ||
| 15 | Not occupied | ||
| 16 | A | Signal, trunk lid contact | Trunk lid central locking drive with trunk lid contact switch |
| 17 | Not occupied | ||
| 18 | A | Signal, wiper relay | Windshield wiper relay |
| 19 | Not occupied | ||
| 20 | Not occupied | ||
| 21 | Not occupied | ||
| 22 | Not occupied | ||
| 23 | Not occupied | ||
| 24 | Not occupied | ||
| 25 | Not occupied | ||
| 26 | Not occupied | ||
| 27 | Not occupied | ||
| 28 | Not occupied | ||
| 29 | Not occupied | ||
| 30 | Not occupied | ||
| 31 | Not occupied | ||
| 32 | Not occupied | ||
| 33 | E | Rear lid open signal | Trunk lid/tailgate button, exterior |
| 34 | A | Signal, exit light | Entrance light, front right |
| 35 | A | Signal, exit light | Entrance light, front left |
| 36 | A | Signal, washer pump | Windshield washer pump |
| 37 | Not occupied | ||
| 38 | A/E | CAN bus high | Connector, CAN bus |
| 39 | A/E | CAN bus low | Connector, CAN bus |
| 40 | Not occupied | ||
| 41 | Not occupied | ||
| 42 | Not occupied | ||
| 43 | Not occupied | ||
| 44 | Not occupied | ||
| 45 | Not occupied | ||
| 46 | Not occupied | ||
| 47 | Not occupied | ||
| 48 | Not occupied | ||
| 49 | Not occupied | ||
| 50 | Not occupied | ||
| 51 | A | Signal, wiper relay for speed 2 | Windshield wiper relay |
| 52 | A | Supply, interior lights | Connector, interior lights |
| 53 | A | Supply, interior lights | Footwell light, front right |
| 54 | A | Supply, interior lights | Footwell light, front left |
