61 13 ... Unlocking and disconnecting different plug connections

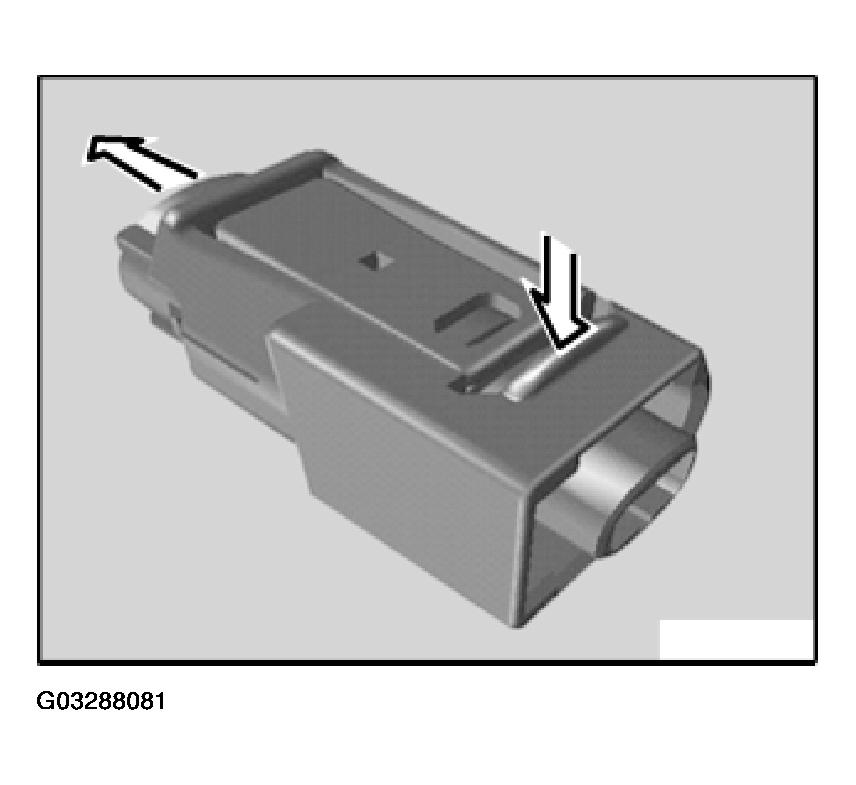

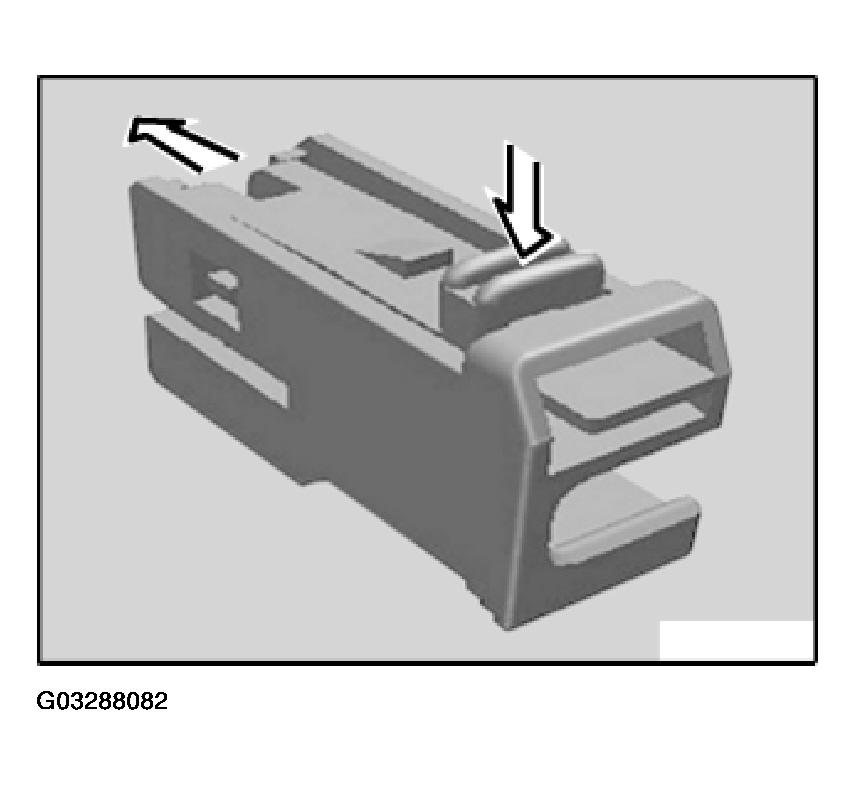

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Pressing Lock And Open Clip

Courtesy of BMW OF NORTH AMERICA, INC.

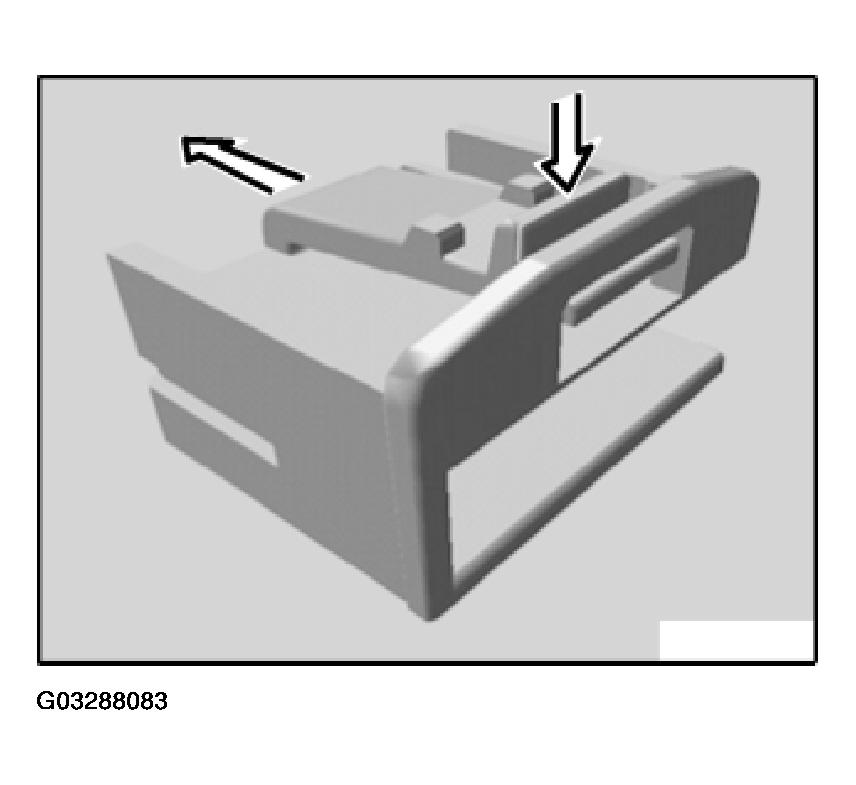

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Pressing Lock And Open Clip

Courtesy of BMW OF NORTH AMERICA, INC.

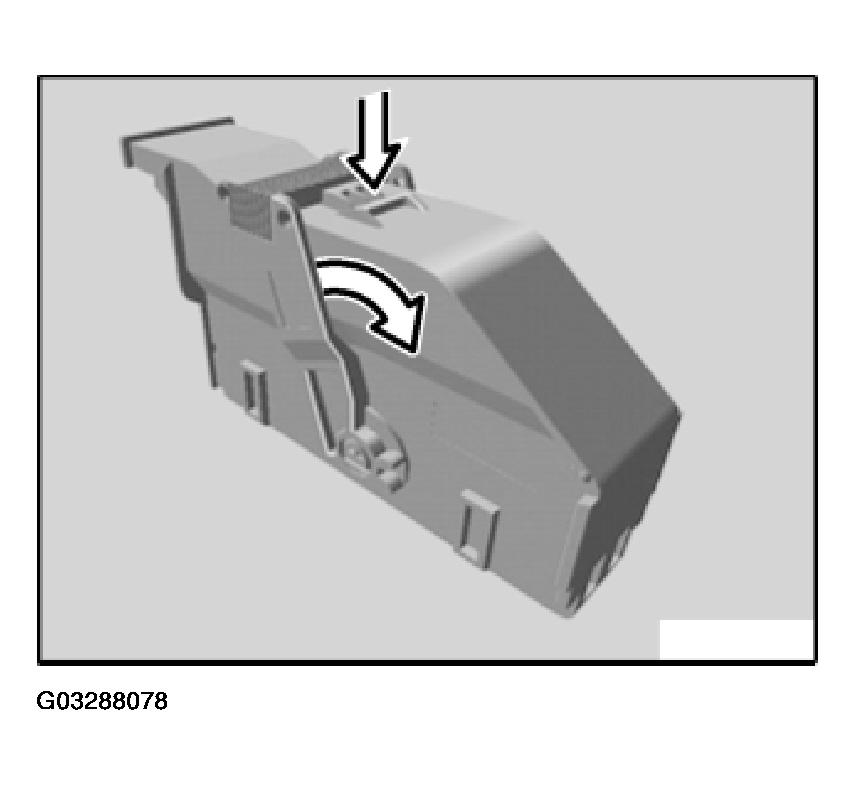

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Opening Clip And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

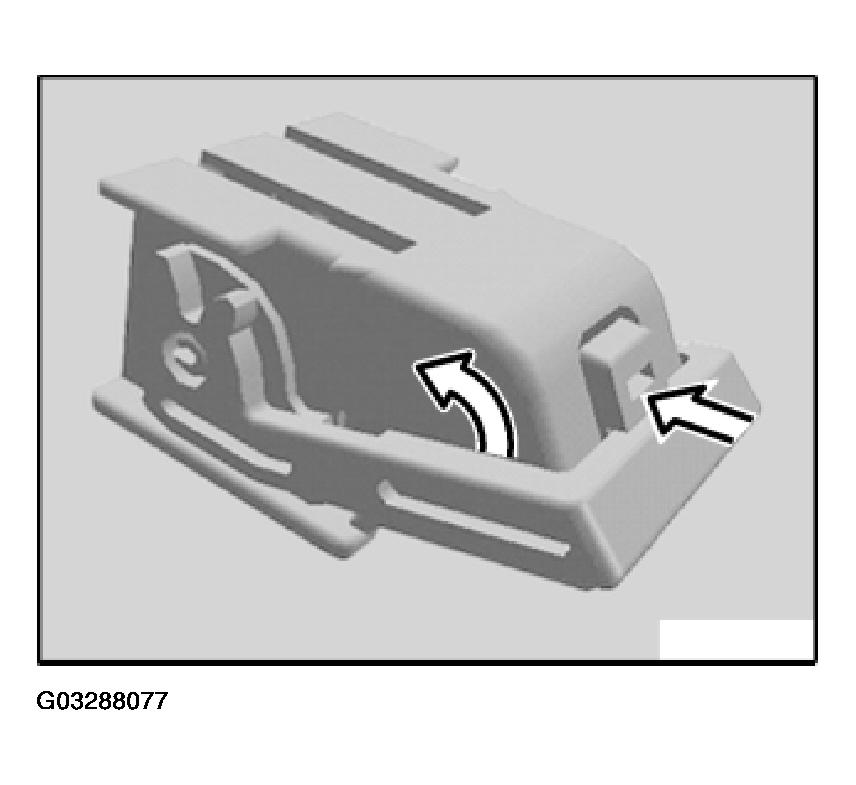

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Pressing Lock And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

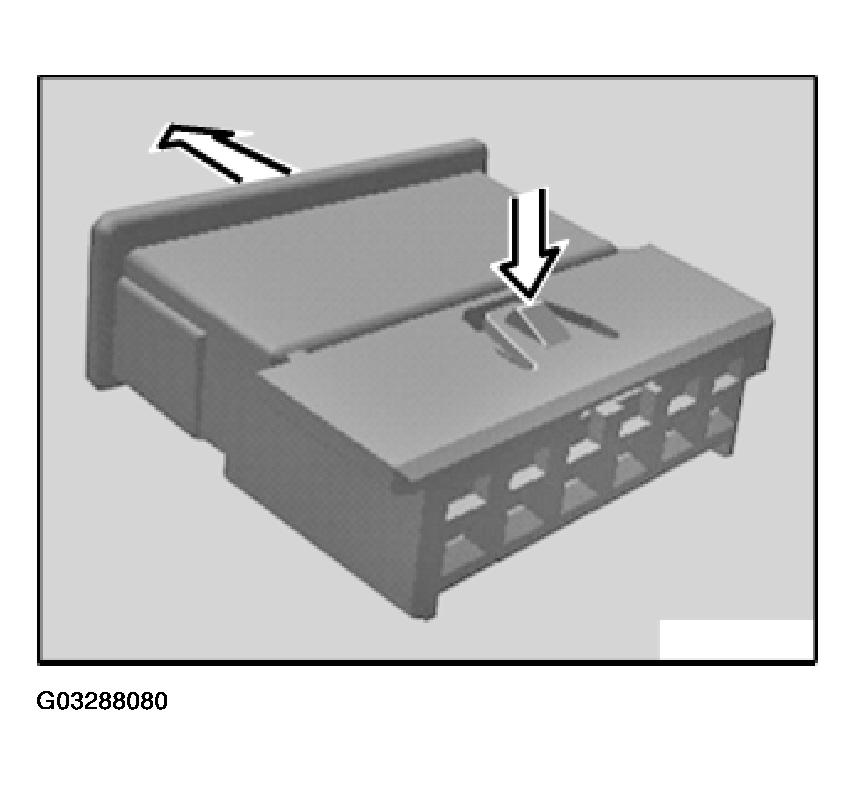

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Pressing Lock And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

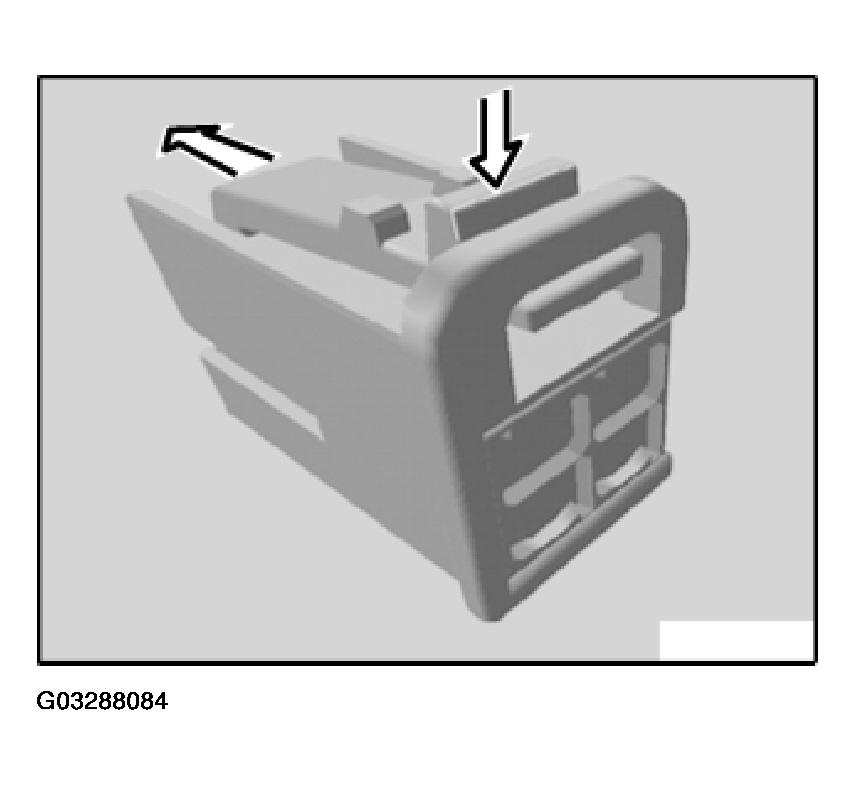

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Pressing Lock And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

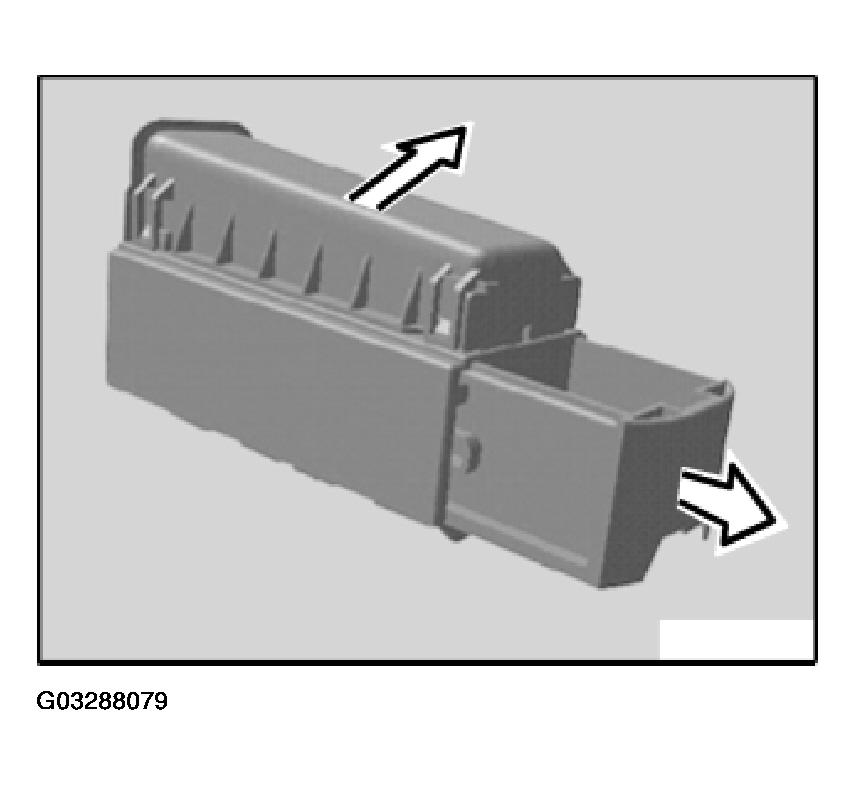

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Pressing Lock And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

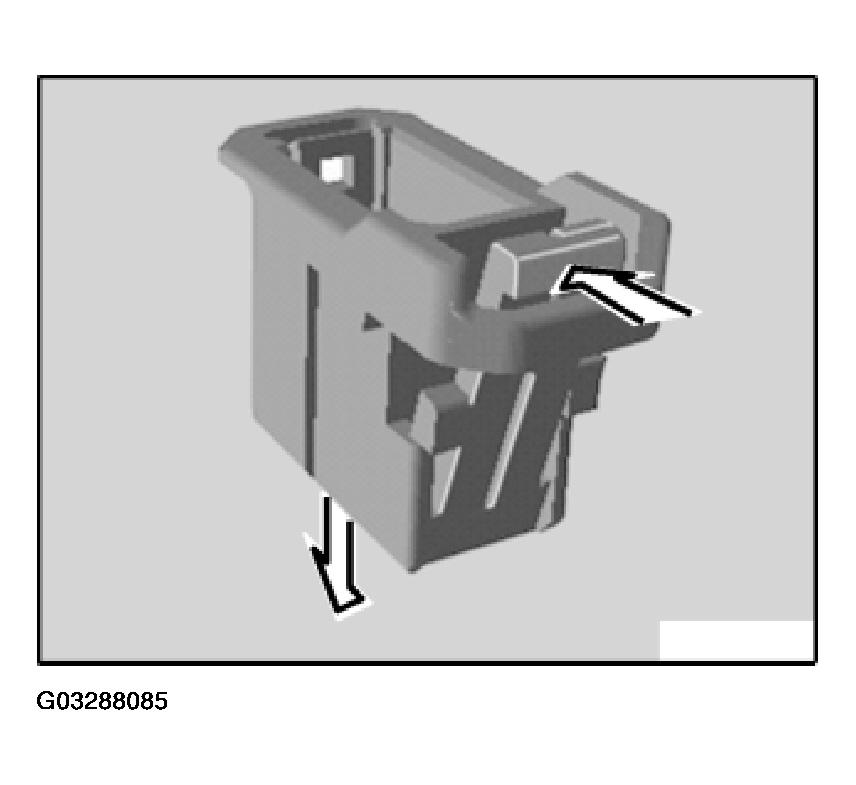

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Pressing Lock And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Pressing Lock And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
