61 35 975 Removing And Installing/Replacing Bumper Antenna For Comfort Access System

Necessary preliminary tasks:

• Partially remove luggage compartment wheel arch trim on left, refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .
• Remove rear bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

Disconnect plug connection (2).

Press catches (1), feed out bumper antenna for comfort access system (3) in direction of arrow and remove.

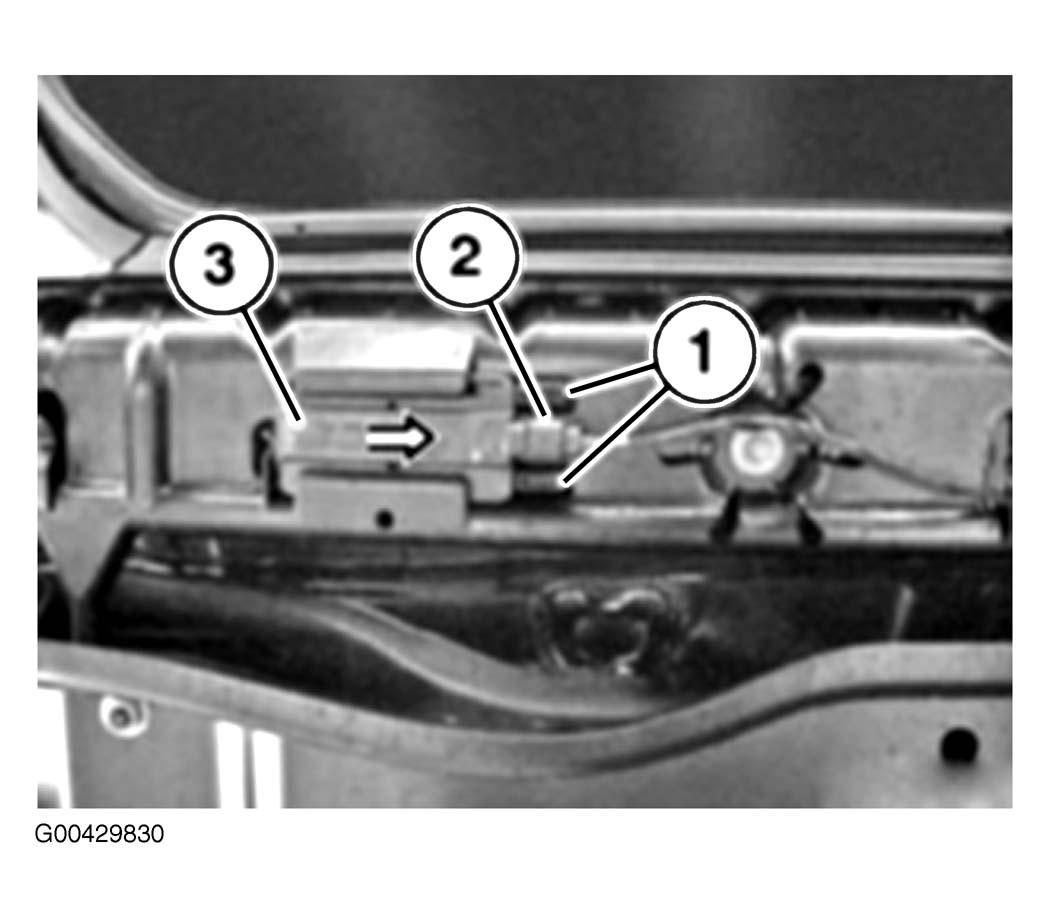

Fig 1: Removing And Installing Bumper Antenna For Comfort Access System

Courtesy of BMW OF NORTH AMERICA, INC.
