32 00... Identifying suspension from label on front axle

NOTE: The type of suspension can be identified from the label on the spring strut/shock absorber.

Label:

BMW part number
Type of suspension
- = Standard suspension (basic)
BA
- = Sport suspension or rough road package
SP
- =E60, E61 AWD
60BAX
- = M Sport suspension
MSP
- = China Long
CHL
- = rough road package
Option

SA

815

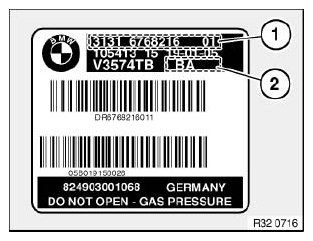

Fig 1: Identifying Suspension From Label On Front Axle
Courtesy of BMW OF NORTH AMERICA, INC.

In the case of "SP" identification, there is a further distinction between:

Sport suspension without spacer ring (A)
Rough road package with spacer ring (A) above the support bearing

Fig 2: Identifying Sport Suspension Without Spacer Ring

G04726331

Courtesy of BMW OF NORTH AMERICA, INC.
