Revised Bus Structure

The following bus overview provides you with an overview of the vehicle electrical system structure and the integration of Advanced Safety and Crash Management in the K-CAN.

Notice the byteflight  bus has been eliminated.

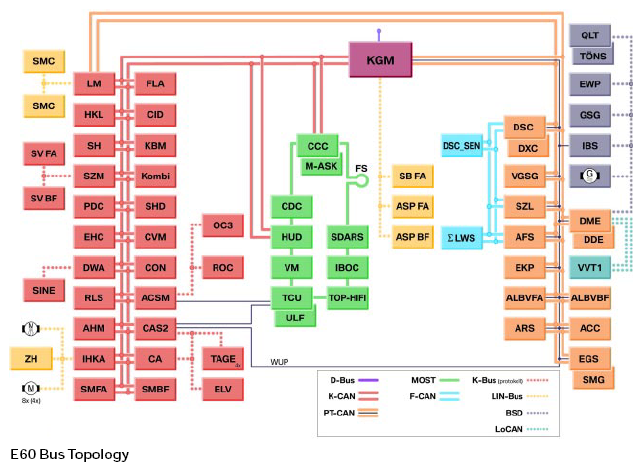

Fig 1: E60 Bus Topology Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
