ACC System Overview

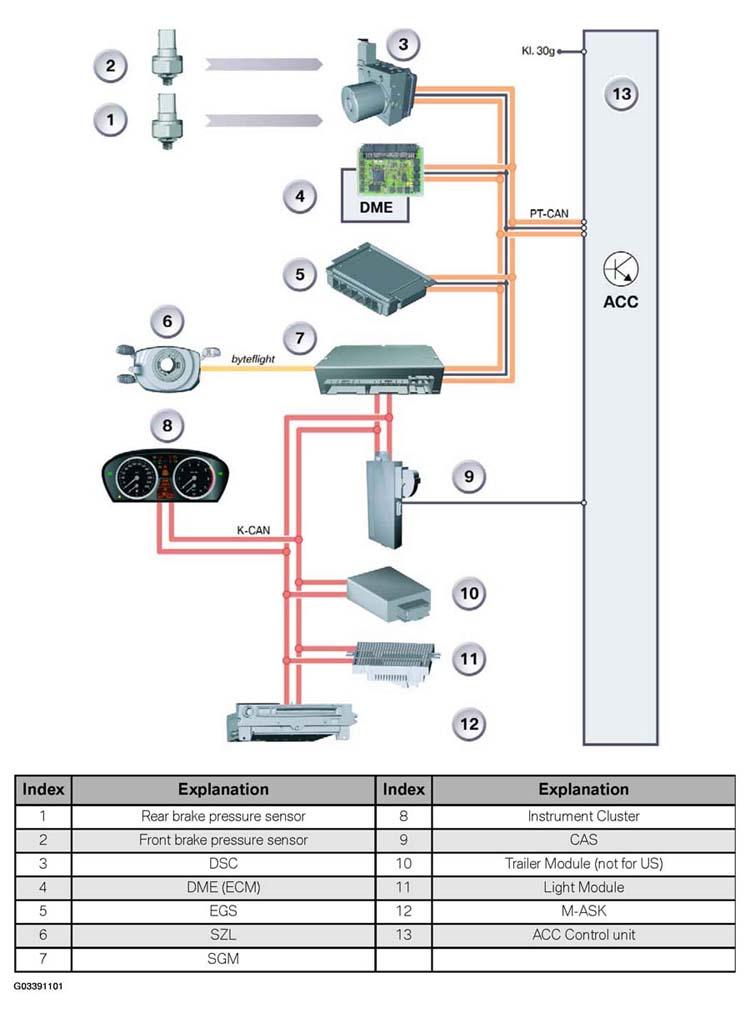

Fig 1: ACC System Overview Schematic
G03391101Courtesy of BMW OF NORTH AMERICA, INC.
