Monitoring Structure Of Secondary Air System Monitoring

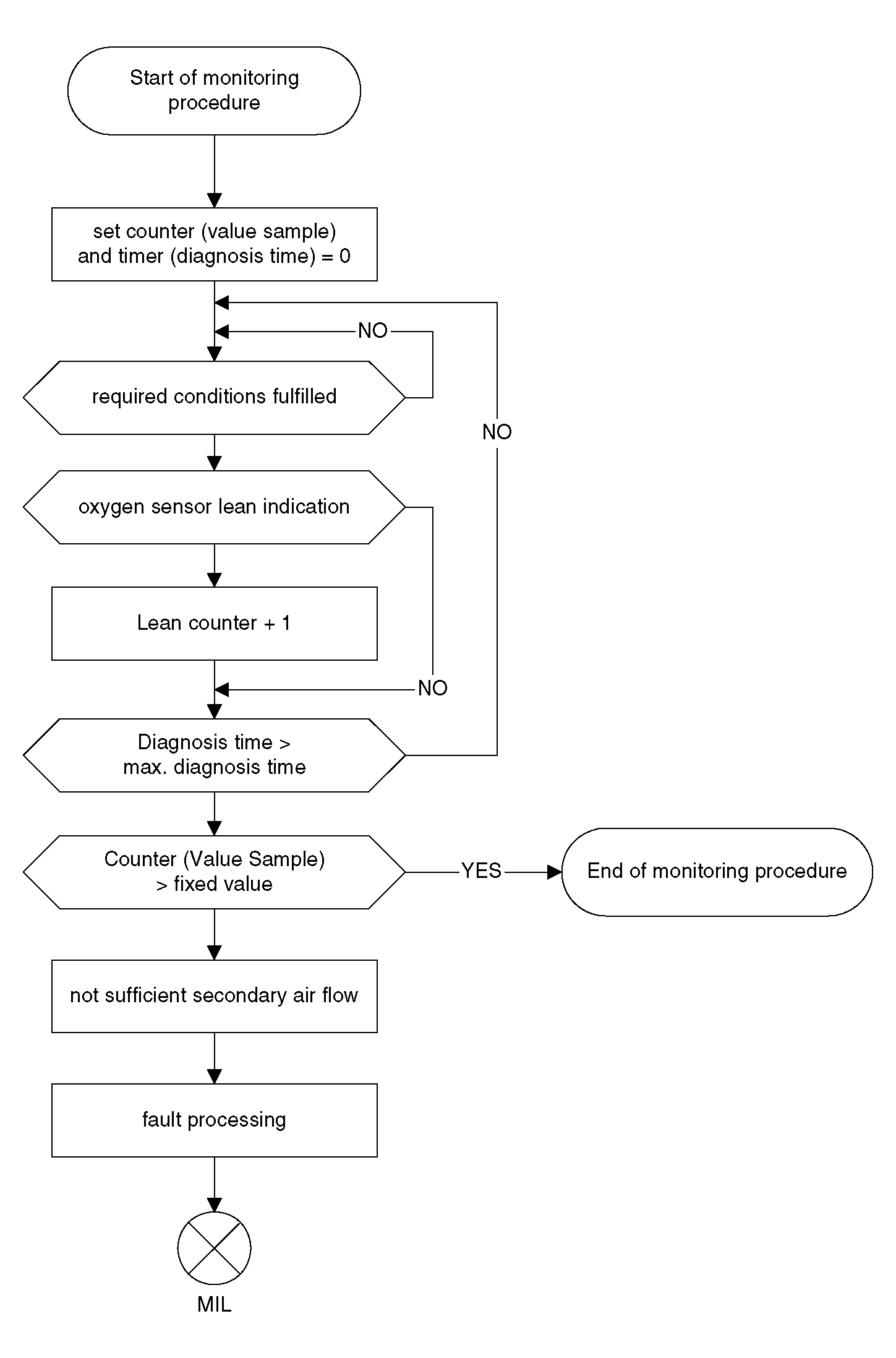

Fig 1: Flow Chart - Monitoring Structure Of Secondary Air System Monitoring
Courtesy of BMW OF NORTH AMERICA, INC.
