System Components

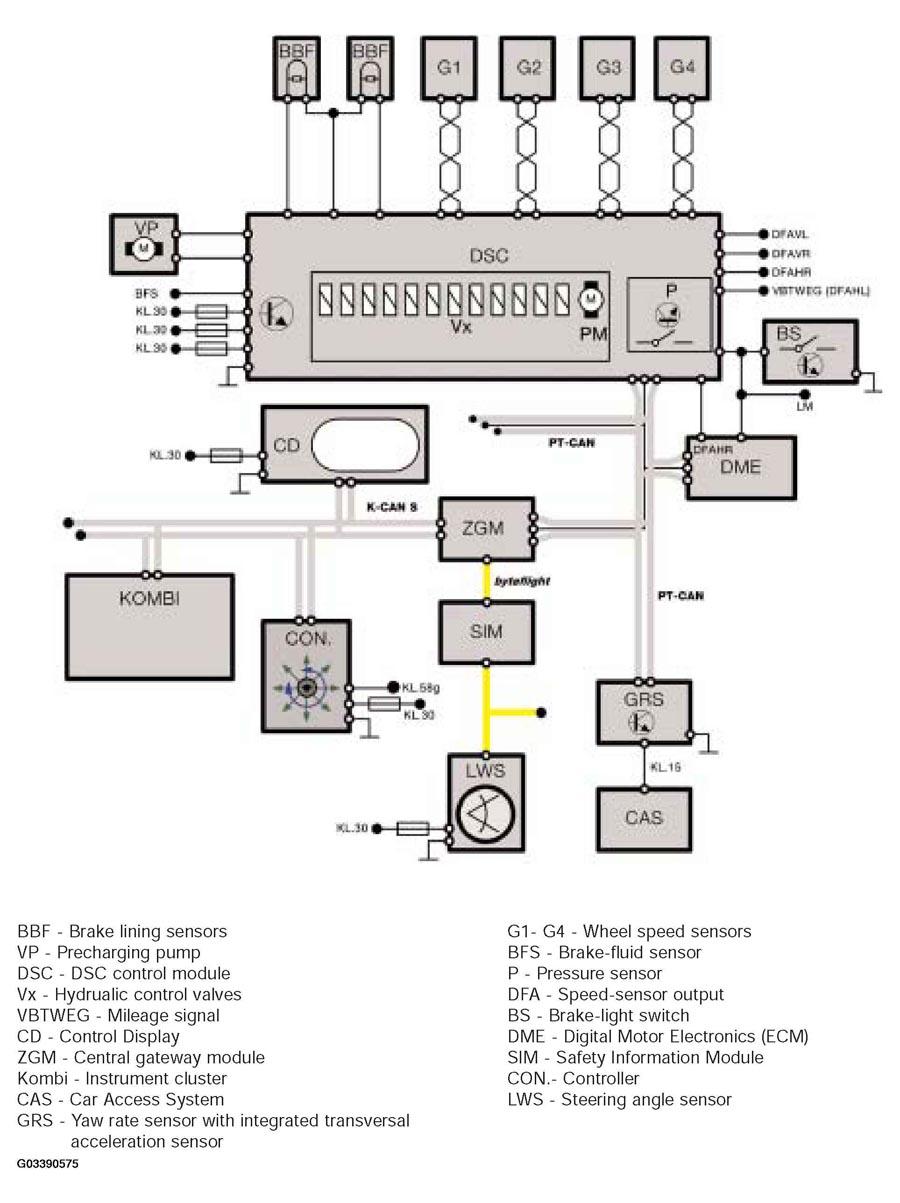

Fig 1: Identifying DSC System Components
G03390575Courtesy of BMW OF NORTH AMERICA, INC.

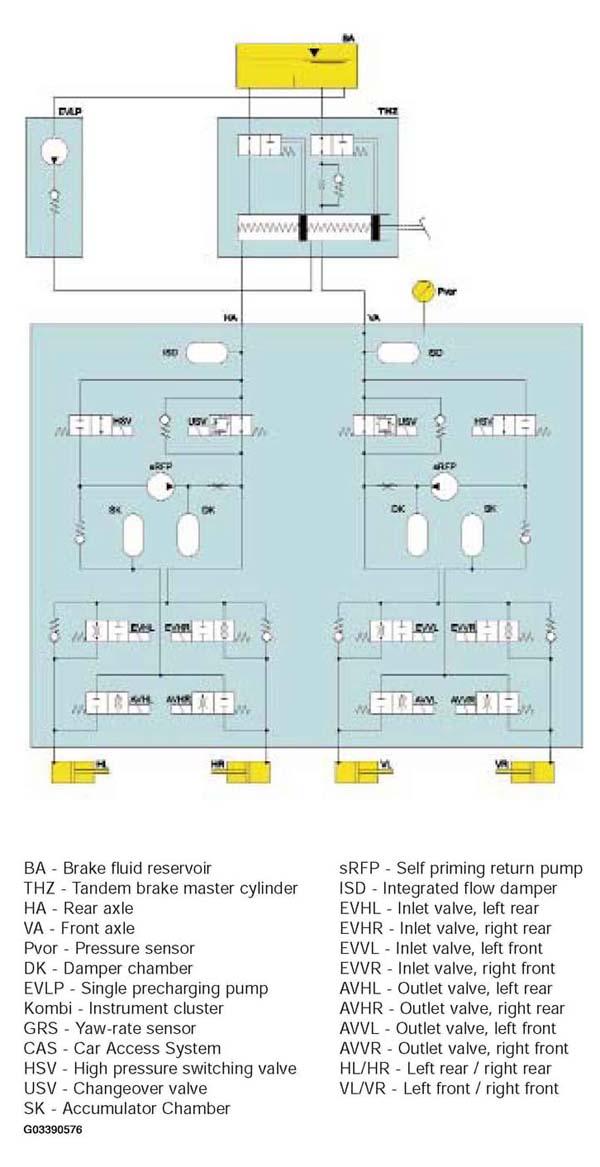

Fig 2: Identifying Hydraulic System Components
G03390576Courtesy of BMW OF NORTH AMERICA, INC.
