Head Airbag (ITS)

The head airbags are similar to the ITS bags used on the MRS II system. They continue to be mounted from the "A" pillar up along the headliner and are anchored behind the "B" pillar. The ITS bags of the MRS III system are also the cold gas inflation type. The head airbags are always triggered with the side (Thorax) bags.

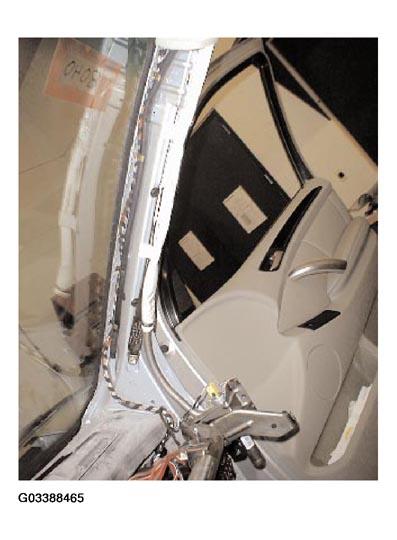

Fig 1: Identifying Head Airbag (ITS) (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

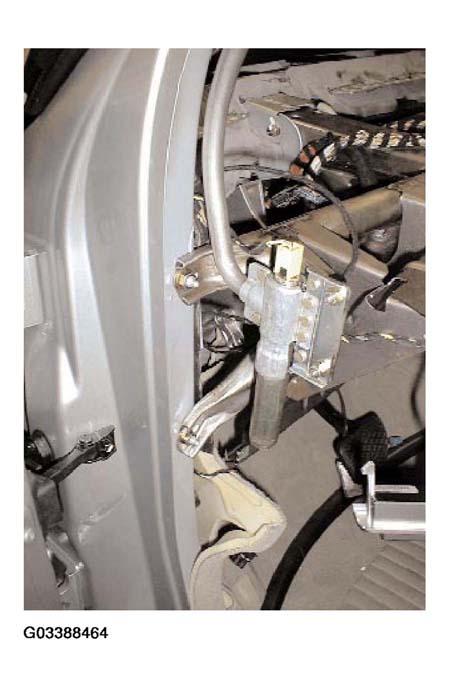

Fig 2: Identifying Head Airbag (ITS) (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
