Basic Body Module X13255 Connector End View

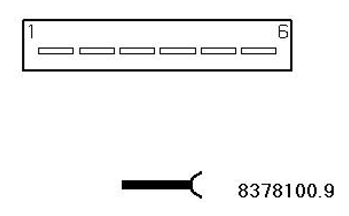

Fig 1: Basic Body Module X13255 Connector End View
G11224846Courtesy of BMW OF NORTH AMERICA, INC.
Pin Assignments at Plug Connector X13255

Pin Type Description /Signal type Connection /Measuring notes
1 E Supply, terminal 30 Fuse F24
2 A Voltage supply, power window motor Window regulator motor, rear right Cabriolet
3 M Ground, power window motor Window regulator motor, rear right Cabriolet
4 E Supply, terminal 30 Fuse F22
5 A Voltage supply, power window motor Window regulator motor, rear left Cabriolet
6 M Ground, power window motor Window regulator motor, rear left Cabriolet
