MoDiC III
>>
MoDiC Cables and Leads
>>
Serial Interface Cable
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Serial Interface Cable
25 feet cable for a hard wire connection between the diagnostic head and the MoDiC.

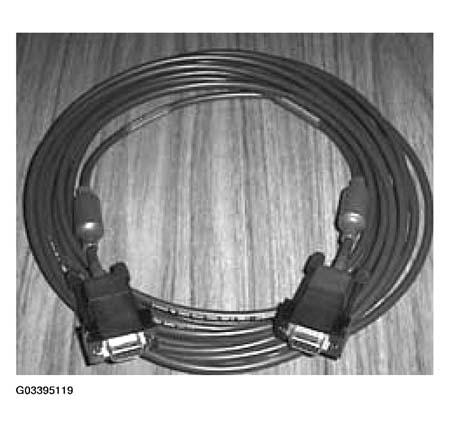

Fig 1: Identifying Serial Interface Cable
Courtesy of BMW OF NORTH AMERICA, INC.
