Fault Symptom Selection

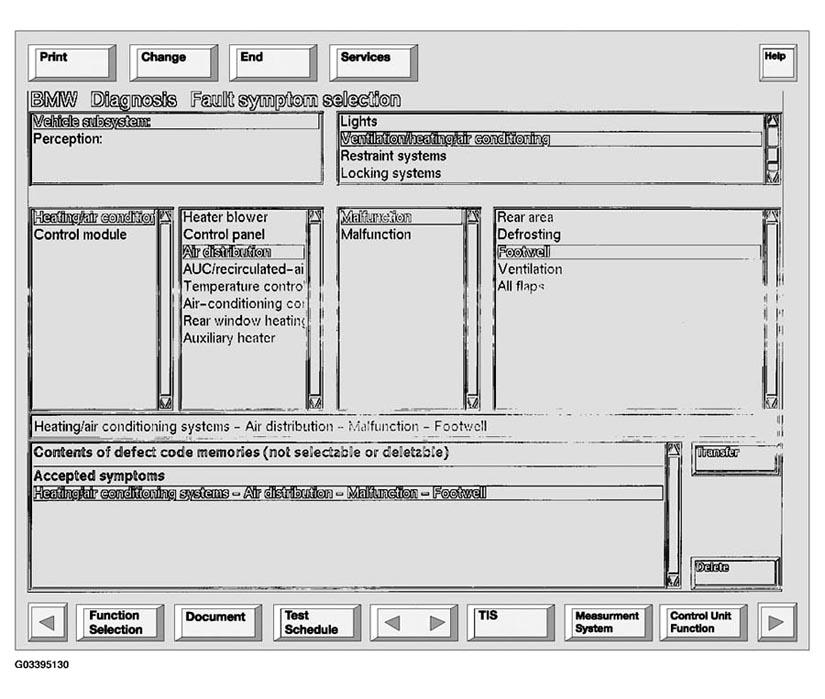

Once the short test has been completed, use the continue arrow (bottom right) to call up the fault symptom selection screen.
The Fault symptom selection screen displays all fault memories set for troubleshooting purposes.
Service technicians can enter fault symptoms observed by themselves or by the vehicle owner. This is done by selecting the appropriate items in a predefined list of symptoms.
Several fault symptoms can be selected simultaneously.
Use the transfer key to transfer selected fault symptoms into the display
The test schedule is generated on the basis of both the symptoms observed by customers or service tech's and the contents of the fault memories.
