Smooth Running Measurement
The DISplus/GT-1 are helpful in pinpointing the cause of an engine misfire. Once the short test is completed, the fault memory of the ECM can be read out to determine which cylinder or cylinders have set misfire faults. There may or may not be any faults present. The engine could be running rough, however no misfire thresholds may have been exceeded.

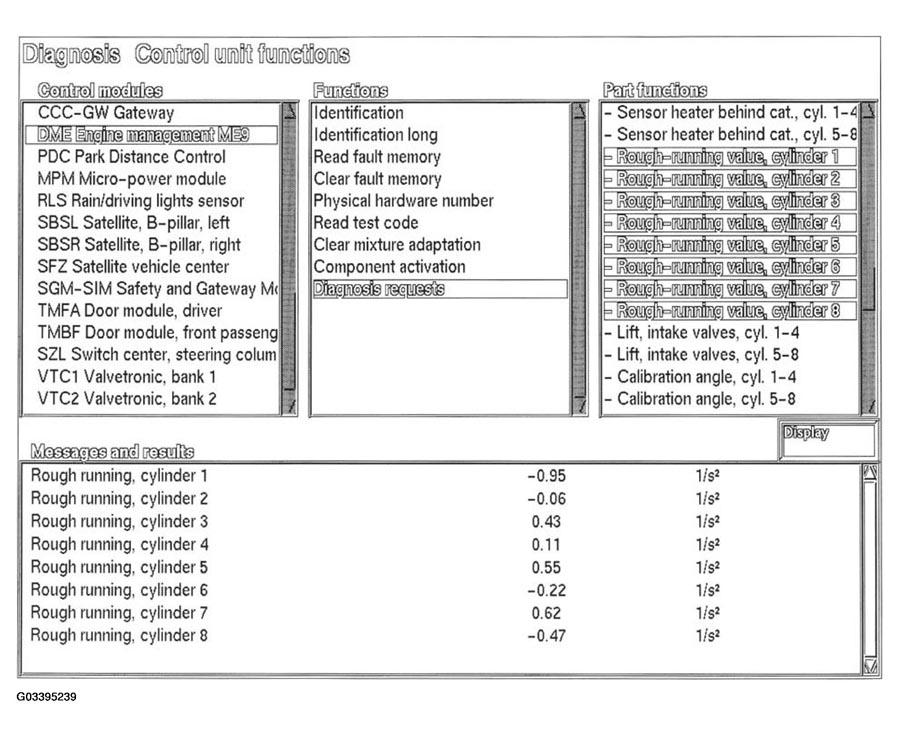

Engine smoothness can be further evaluated by looking at the smooth running values. In the "Control Unit Functions" screen under "Diagnosis Requests" there is a value indicated for each cylinder which can be compared for each cylinder. This value is an indication of crankshaft speed variations in each cylinder.
