13 3 060 Fixture

NOTE: For checking fuel pressure on K-Jetronic and L-Jetronic as well as oil pressure

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

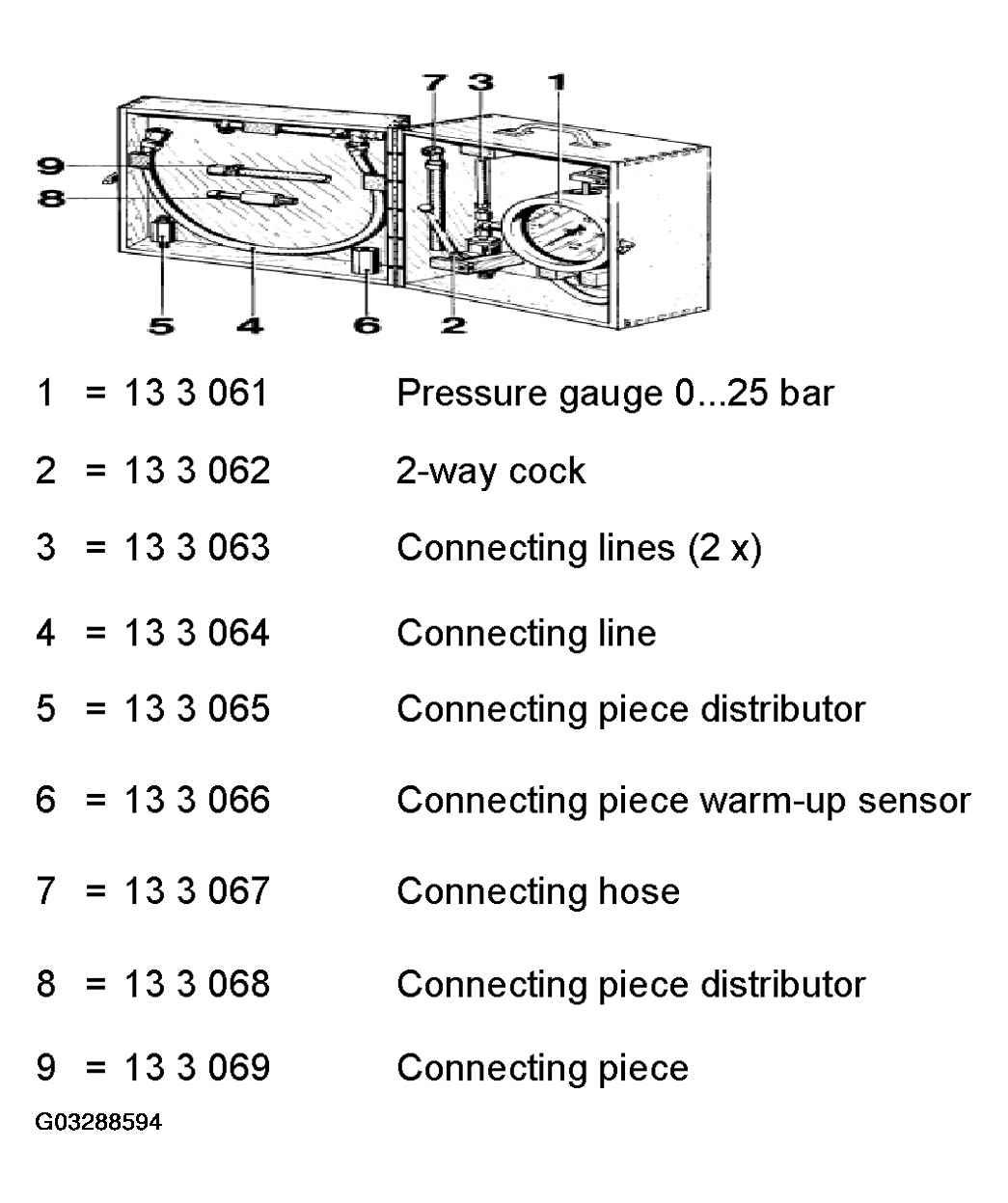

Fig 1: Identifying Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 13 3 060

Fixture

Consisting of:

1 = 13 3 061 Pressure gauge 0. . .25 bar

2 = 13 3 062 2-way cock

NOTE: Engine: All, except S50, S54, N73

3 = 13 3 063 Connecting lines (2 x)

NOTE: For fuel and oil pressure testing

4 = 13 3 064 Connecting line

NOTE: Mit T-piece for L-Jetronic All except N73

5 = 13 3 065 Connecting piece distributor

NOTE: All except N73

6 = 13 3 066 Connecting piece warm-up sensor

NOTE: All except N73

7 = 13 3 067 Connecting hose

NOTE: For checking fuel pump delivery All except N73

In conjunction with: 13 3 020

8 = 13 3 068 Connecting piece distributor

NOTE: All except N73

In conjunction with: BMW SERVICE TESTER

9 = 13 3 069 Connecting piece

NOTE: For warm-up sensor with hose all except N73

In conjunction with: BMW SERVICE TESTER
