Power Supply: Pt-Can

  1. What are the circuit descriptions of the three wires that make up the PT-CAN bus?

    ____________________________________________________________________________

  2. Record the voltage levels on the PT-CAN bus (high and low) using the DISplus scope as shown - when the bus is:

    Inactive - high __________ low _____________ Active - high _____________ low ____________

    Notes on setup: ________________________

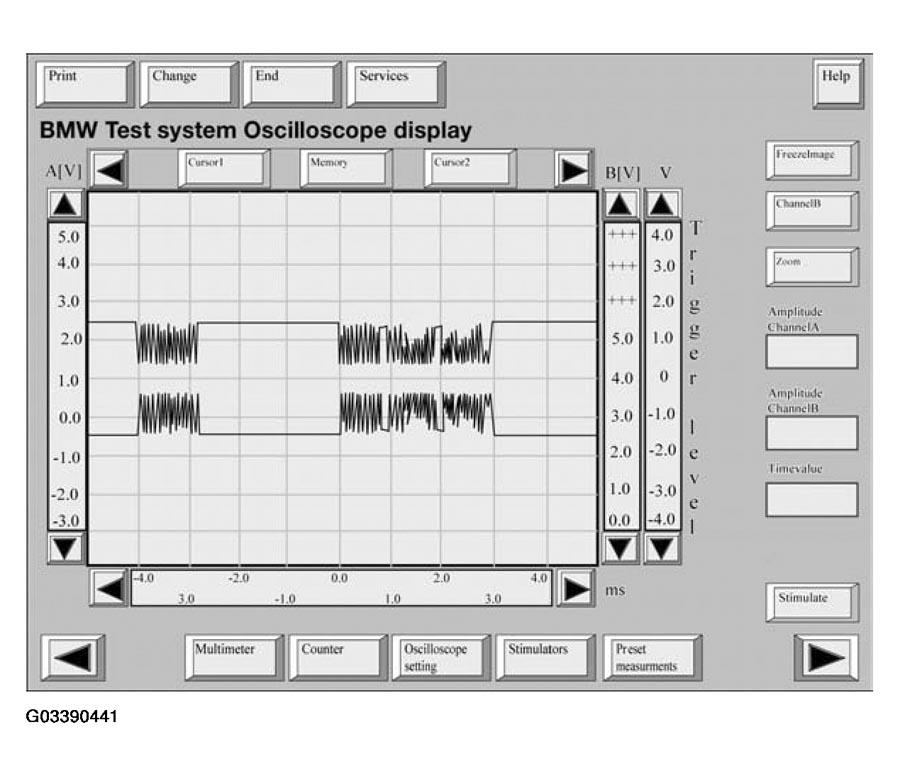

    Fig 1: BMW Test System Oscilloscope Display
    G03390441Courtesy of BMW OF NORTH AMERICA, INC.
