61 35 177 Removing And Installing (Replacing) Rain/Light Sensor

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

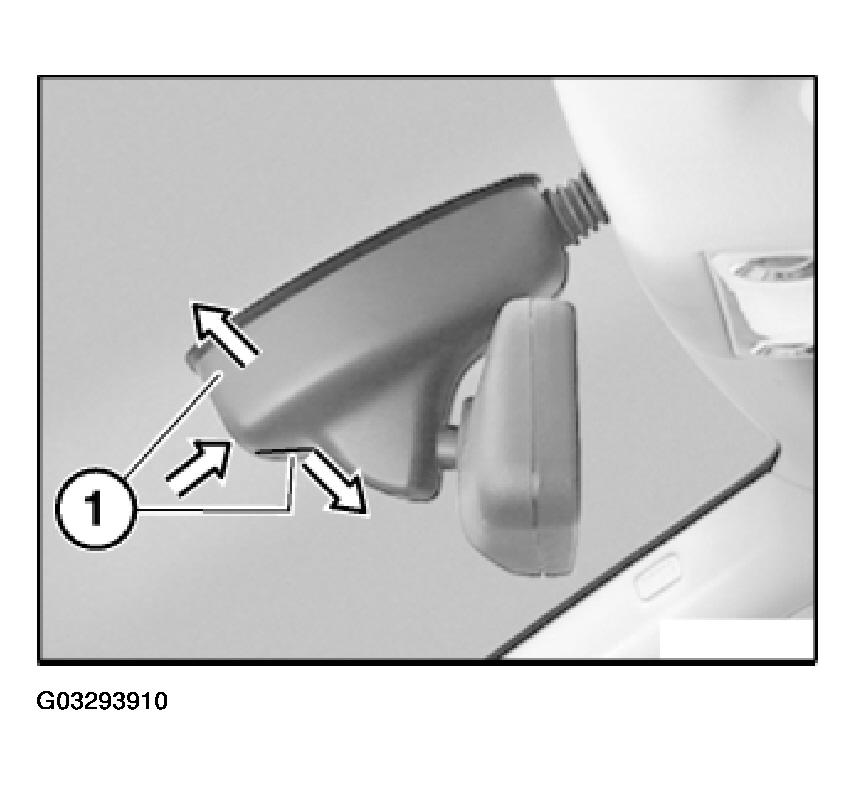

Fig 1: Two-Part Mirror Base Cover And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

Installation:

Do not damage optical element covered by rain/light sensor (2).

If necessary, initialize rain/light sensor. Refer to 61 35 679 INITIALIZING RAIN/LIGHT SENSOR .

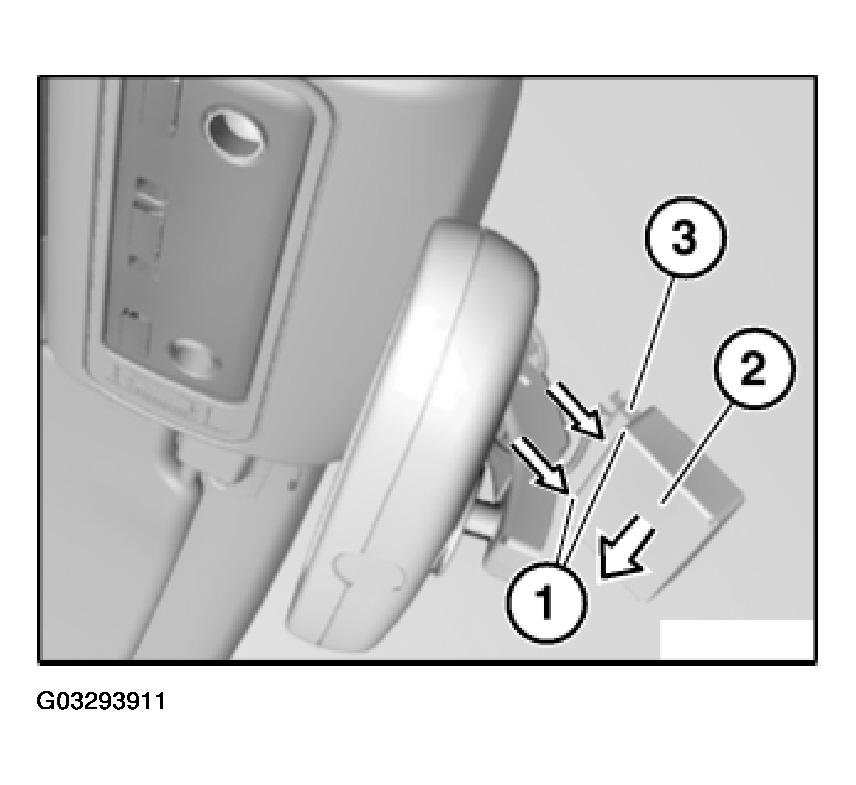

Fig 2: Rain/Light Sensor, Locks, Plug Connection And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

• Programming.
• Coding.
• If necessary, car & key memory.
• CD "CIP".

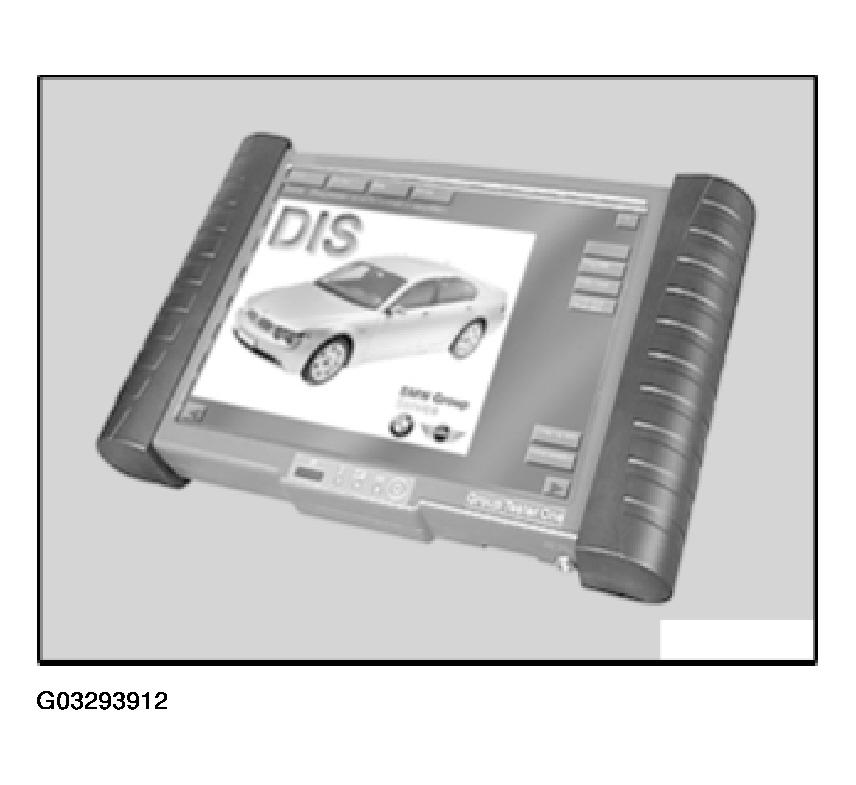

  Fig 3: Programming Equipment

  Courtesy of BMW OF NORTH AMERICA, INC.
