Dynamic Stability Control (DSC): Sensors
The DSC 5.7 receives input signals from the following sensors:
- Wheel speed sensors (4 active wheel speed sensors with direction of rotation detection)
- Steering angle sensor (located in the SLZ), made available over the PT-CAN Bus
- Brake fluid level warning switch (level monitoring in brake fluid reservoir)
- Brake light switch (BS)
- Rotation rate sensor - yaw (satellite of DSC on PT-CAN Bus)
- Transversal acceleration sensor (integrated in rotation rate sensor)

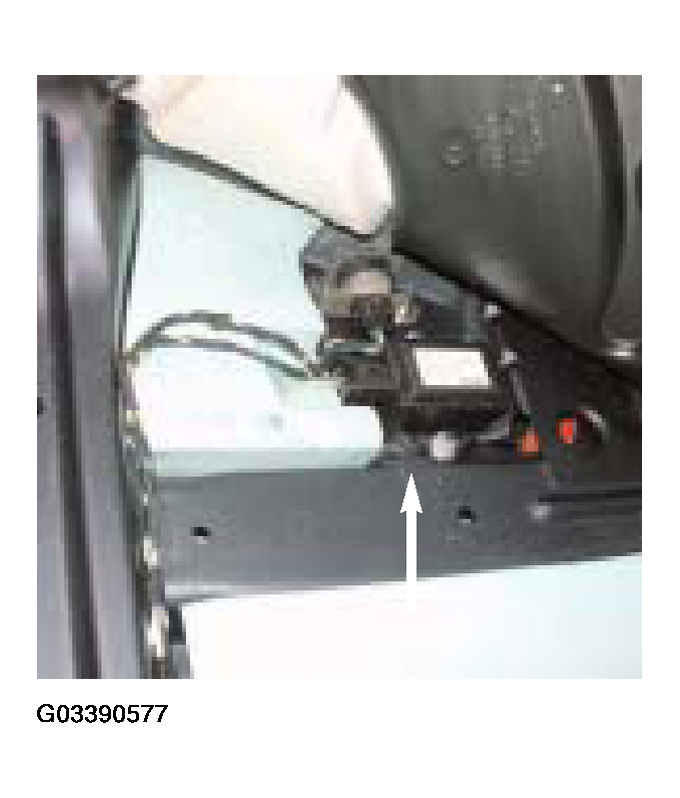

The Rotation rate (yaw) sensor is located under the carpet in front of the passenger's seat in the passenger compartment.

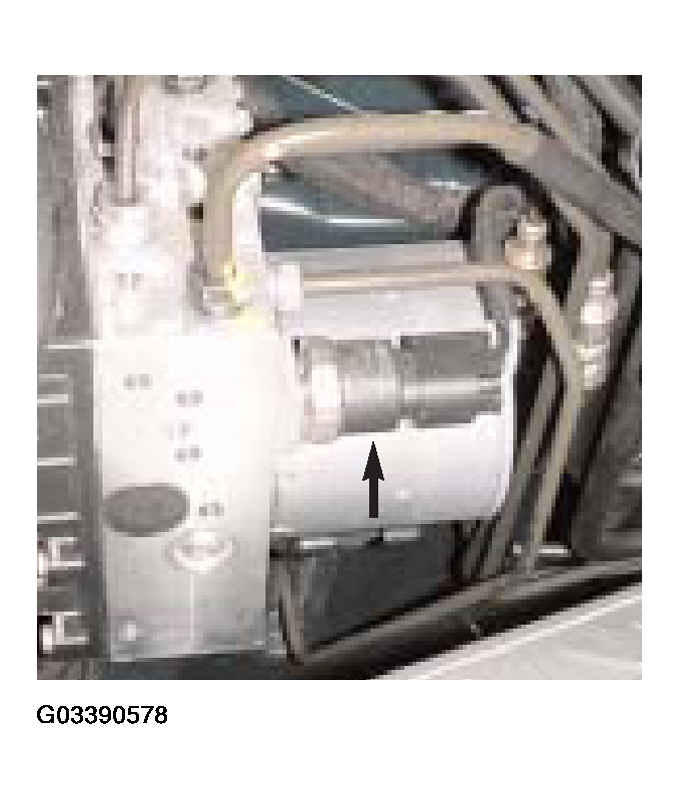

- Pressure sensor (installed at the inlet of front brake circuit)
